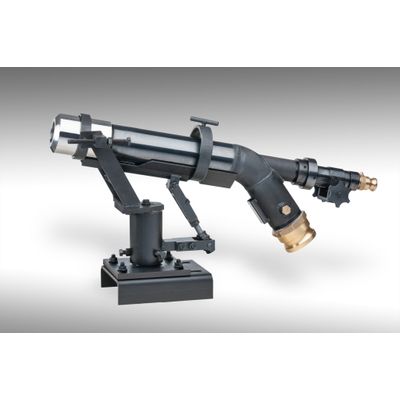

FlammaTec - Flex Unique Dual-Gas Inlet Injector-Type Burner

TECHNICAL SPECS
fuel
natural gas, LPG, propane

energy output
S (0.3 – 1.5 MW)
M (1.1 – 4.4 MW)
L (3.6 – 8 MW)

cooling air
≥ 0.4 bar (non-firing period)

socket plate cooling air
1 – 2 kPa, 280 Nm3/h (continuous)

CAPABILITIES
applicable under-port firing for regenerative cross-fired and end-port furnaces

conventional burners with cast iron plate and nickel-free steel nozzles

twin nozzle concept with two independent gas streams

fully controlled dual gas streams with manual control valves


very low maximum flame temperature resulting from low gas velocities

inner nozzle position adjustable in wide range

easy burner angle adjustment

• high luminous flame with excellent heat transfer resulting in low NOx level
• flexible burner with tunable flame in a wide range of performance
• adaptable fit into existing bracket and socket plate
• two gas streams are separated completely with the possibility of remote flame length and shape control
• better heat transfer from flame to glass surface enabling excellent efficiency and low specific energy consumption (less than 5.5 GJ/ton molten glass)
• easy burner angle adjustment

• FT Flex gas injectors operating ± 30% of nominal capacity
• fully adjustable injector brackets
• socket plates
• stainless steel flexible hoses
• gas spools enabling full control of flame shape and length
• tailor-made check valves
