Brugg SECON-X - Flexible Fuel Line with Monitoring
SECON-X was specifically designed as a double-walled pipe system for underground fuel lines in gas station construction. Quick and easy installation without welding work, rapid completion and minimal downtime during retrofitting are just some of the key advantages of SECON-X.
- Operating pressure: PN 10
- Dimensions: DN 25 -100
- Medium pipe: Stainless steel
suction line, pressure line, filling line. Can be used as a gas pendulum or gas return line at any time.

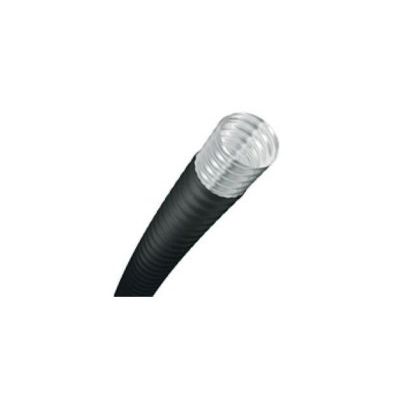

SECON-X® consists of a flexible, corrugated inner tube made of stainless steel, material no. 1.4404. The geometry of the spirally corrugated inner tube - together with the PE bar jacket - creates a circumferential, continuous channel which, in the event of damage, prevents the medium from leaking out and thus contamination. In addition, this interstitial space can be used for pressure testing or leak monitoring.
Since SECON-X® is made of corrosion-resistant material, additional cathodic corrosion protection is not necessary.
