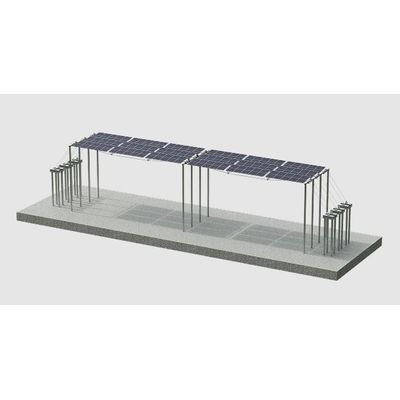

Haitai - Flexible Mounting System

Commonly used for large-span rivers, large-area ponds, rugged mountains, etc.

Most popular related searches

Large span and multi-span, can achieve large spans by tensioning prestressed cables between fixed points at both ends
High clearance: According to requirements, the height of the lower edge of the module from the ground can be raised by raising columns and other methods
Strong adaptability: Can adapt to various complex terrains

Application Scenarios : Large-span rivers, large-area ponds, rugged mountains
Longitudinal Span : Single-layer cable can reach 25m, double-layer cable can reach 60m
Force Characteristics : Cable structures need to consider geometric nonlinearity, P-? effect, large displacement effect, temperature stress, etc.
Module Layout : nP form (n is the number of transverse modules, P is the number of longitudinal modules)
Force Component Composition : Column foundation, column, beam, load-bearing cable, diagonal rod, diagonal rod anchor foundation, etc.
Support System : Stabilizing cable, transverse inter-column support, load-bearing cable transverse connection system
Anti-corrosion Form : Divided into substrate surface hot-dip galvanized aluminum magnesium or hot-dip galvanized, cables can also be wrapped with PE material
Wind Speed & Snow Load : Values according to project location
