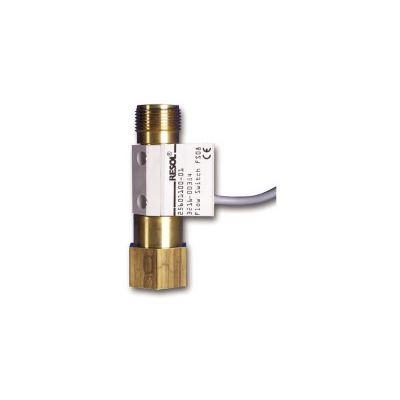

RESOL - Model FS07 / FS08 - Flow Switch

SHARE

The flow switch FS07 / FS08 is used for flow detection and incorporates a reed-contact, which will be closed as soon as the flow rate is larger than 1 litre/min.

  • Switching capacity: 250 V AC / 3 A (FS07) 300 V DC / 1 A (FS08)
  • Maximum pressure: 10 bar
  • Housing: brass
  • Dimensions: 102 mm x 36 mm
  • Fittings:
    • upper connection thread: ET 22 mm, flat sealing
    • lower connection thread: IT ¾“,
  • Temperature range: -30 °C ... 100 °C
  • Switching point: 1 l / min
