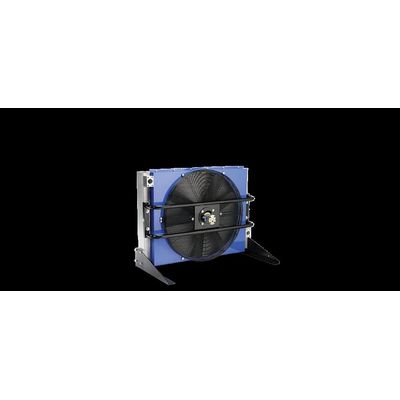

TTP - Model BOL Series -Fluid Air Fan
The rugged, lightweight and compact BOL Series provides outstanding heat dissipation for extreme heat loads. Available with AC or hydraulic fan motors, all feature proven brazed aluminum P-BAR™ plate and bar core technology engineered with an aggressive turbulator that produces ultra-high heat transfer. Available with two bypass relief options — a factory installed pressure bypass (P-BAR core) or an internal temperature controlled bypass (T-BAR™ core).
Most popular related searches
- Bar and Plate Brazed Aluminum Core
- Provides the best heat transfer per given envelope size while minimizing pressure drop
- Air-side fin design minimizes fouling and static pressure ensuring long-term, reliable performance
- Welded fittings/ports and manifolds ensure structural integrity
- Standard SAE ports – NPT & BSPP available
- Customized units are available to meet your OE specific performance requirements
- T-BAR core optional for high viscosity oils or other highly fouling fluids.
- Low noise
- T-BAR core
- Servicable internal pressure bypass
- Internal temperature controlled bypass
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- Custom designs are available
- Maximum Operating Pressure 250 PSI
- Maximum Operating Temperature 300°F
- Mounting Feet - Steel
- Standard Core - Brazed Aluminum Bar and Plate
- Tanks – 5052 Aluminum
- Nose Bar & Little Bar – 3003-H Aluminum
- Air Fin, Plate, Turbulator & End Plate – 3003-O Aluminum
- Fanguard - Steel
- Connectors - Aluminum
- Fan - Aluminum Hub, Plastic Blades
- Shroud - Steel
- Motor - TEFC & IEC
- Petroleum/mineral oils
- Oil/water emulsion
- Water/ethylene glycol
