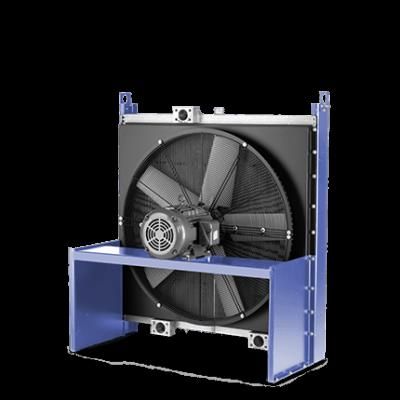

TTPModel OCA Series -Fluid Air Fan

SHARE

The OCA Series is available in a wide range of sizes designed for a broad range of both mobile and industrial applications.  Its rugged steel construction features the patented T-BAR™ solid extrusion core technology, but is more efficient and lighter in weight than competitor models.  This high performing series has the ability to handle high viscosity fluids with the advantage of providing ample cooling in areas where water is costly or unavailable.

  • High efficiency, light weight, low fouling extruded core design
  • Rugged construction with a patented T-BAR brazed aluminum core captured in steel framing
  • Both mobile and industrial applications
  • High flow capacity; with a flow range from 20-500 GPM
  • Ability to handle high viscosity fluids like gear oil cooling
  • Standard sizes available with short lead time
  • Enclosed fan cooled standard – TEFC
  • Hydraulic circuits
  • Young Radiator – OCS interchange (approximate)
  • American Industrial – AOCS interchange (approximate)
  • External pressure bypass
  • All catalog product is available with short lead-times
  • Expert application engineers are available to select and size the right product for your application
  • Custom designs are available
  • Maximum Operating Pressure 250 PSI
  • Maximum Operating Temperature 350°F
  • Fan Blade - Composite with cast aluminum hub
  • Cabinet - Steel with baked enamel finish
  • Connections - Aluminum
  • Motor Support - Steel
  • Shroud - Steel
  • Core - Brazed Aluminum
  • Motor - TEFC & Hydraulic motor
