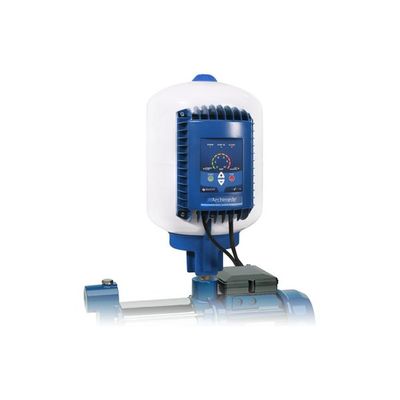

ELECTROIL - Model IMMP1.1W -FlyVar Pump-inverter System
FromELECTROIL s.r.l.
FlyVAR Pump-Inverter system and integrated expansion vessel offers all the advantages of constant pressure control combined with greater efficiency and special Inverter-Vessel cooling system. 5-way fitting and pressure transducer already mounted together with the inverter allow for quick installation. System guarantees smooth starts and stops, silent operation and substantial energy savings.
Most popular related searches
inverter system
inverter
electric power
electrical power
energy saving
electric motor
electrical installation
- Micro-LED synoptic interface and rapid setting of the working pressure
- Minimum flow shut-off protection
- Dry running protection
- Motor over-voltage and over-current protection
- Maximum motor speed adjustable up to 10% above the nominal value
- High degree of protection casing
- 1" 5-way hydraulic fitting with IP 67 pressure transducer already connected to the fitting
- Energy savings of up to 40% compared to traditional systems
- Constant pressure and silent operation
- Quick and easy installation
- Quick electrical connection to the motor and to the electrical power supply
- Self-adjustment procedure for the pump operating parameters
- Improves the efficiency of the inverter thanks to the special cooling system for thermal conduction of heat from the inverter to the expansion tank
- Screw the 5-way fitting onto the pump delivery
- Connect Archimede to the pump`s electric motor
- Connect Archimede to the electrical power socket
- Close the pump delivery, press START and wait for the self-regulation check to complete*
- For versions with display interface, before starting the check, enter the absorbed current and the direction of rotation of the motor
