E-TOR - Model 110 - For Power Grids System
FromI-TOR LLC
The E-TOR-110 device is designed to take power from a 110 kV high-voltage industrial frequency network, and convert it into low-voltage electrical power of 220 V. It can power both elements of the metering system and individual devices, for example, anti-icing of wires.
Most popular related searches
power transmission line
power grid system
power transmission
low voltage power
power line
electric power
electrical power
grid system
power grid
high voltage network
- Weight and size parameters are several times less than classic transformers
- Work in any spatial position
- Resistance, explosion and fire safety
- Ease of installation on a power transmission line or substation support

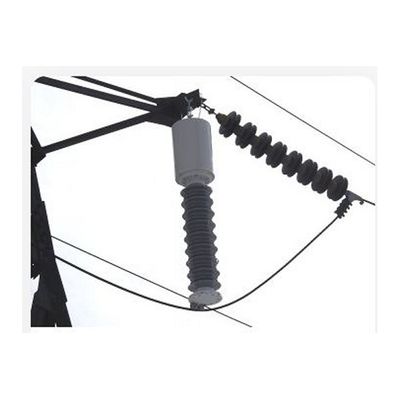

The e-TOR-110 device consists of an overhead or support high-voltage converter suspended on a power transmission line support or mounted on a support structure and an output cable. It can also be equipped with an uninterruptible power supply cabinet.
The high-voltage converter is a combined step-down transformer 110 / 0.22 kV with a power from 300 to 1000 W. Its distinctive feature is the ability to work in any position, small dimensions and weight (no more than 120 kg). The insulation does not contain flammable and explosive components, which makes the e-TOR device maintenance-free and resistant to external environmental factors.
- Parameter value : Value
- Rated voltage, kV : 110
- Rated secondary voltage, V : 220
- Rated mains frequency, Hz : fifty
- Rated power, W : 300, 500, 1000
- Installation method : Suspended or support
- Climatic performance : U1, UHL1
- Weight of one phase, no more, kg
