Bryan Boilers Div. - Bryan Steam LLC

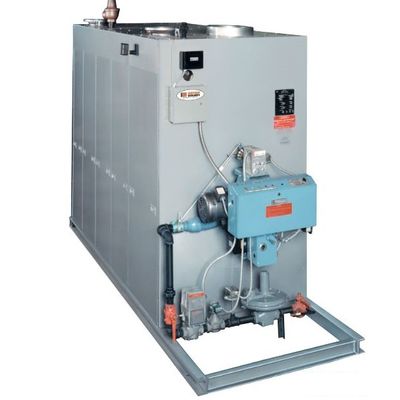

Bryan - Model RV Series - Forced Draft, Oil, Dual Fuel & High Efficiency Boiler
Forced draft gas, oil or dual-fuel hot water and steam boilers. Multi-pass flue gas travel for maximum heat extraction. Capacities of 3,500 MBH input (84 BHP output) to 8,000 MBH input (201 BHP output).
Most popular related searches
water and steam boiler
fuel efficiency
burner head
combustion chamber
boiler tube
steam boiler
boiler efficiency
hot water boiler
burner
combustion burner
- Water side or steam side interior accessible for cleanout and inspection, front and rear openings, upper and lower drums.
- Large volume water leg downcomers promote rapid internal circulation, temperature equalization and efficient heat transfer.
- Boiler tube and furnace area access panel: heavy gauge steel-lined with high temperature ceramic fiber and insulation, bolted and tightly sealed to boilerframe. "
- Single side access; combustion chamber, tubes and burner head are completely accessible from one side simplifying maintenance and minimizingfloorspace.
- Minimum sized flue vent.
- Control panel: all controls installed with connections to terminal strip.
- Forced draft, flame retention head type burner. Efficient combustion of oil or gas, quiet operation.
- Heavy steel boiler frame, built and stamped in accordance with the appropriate ASME Boiler Code.
- Heavy gauge steel boiler jacket with rust-resistant zinc coating and enamel finish, insulated with fiberglass to insure exceptionally cool outer surface.
- Bryan bent water tubes are flexible, individually replaceable without welding orrolling. Nevermore than two tube configurations.
