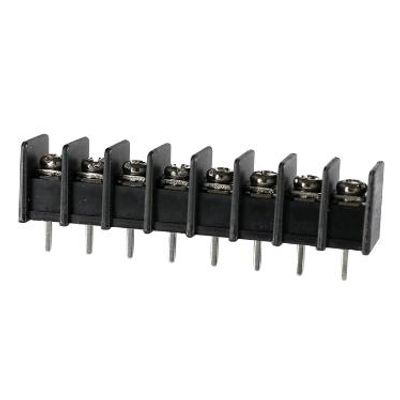

Forsent - Model MG25C-7.62 -Barrier Terminal Blocks
Material: Pitch 7.62MM. Poles 2P-24P. Screws M3, Steel, Ni Plated. Wire guard Brass, Tin Plated. Housing PA66.UL94V-0.
ELECTRICAL
- Rated voltage 300V
- Rated current 20A
- Withstanding Voltage AC2000V/1 Min
- Wire range 22-14AWG
MECHANICAL
- Temp-Range -40°C~+105°C
- MAX soldering +250°C for 5 sec
- Torque D5Nm(4 4lbin)
