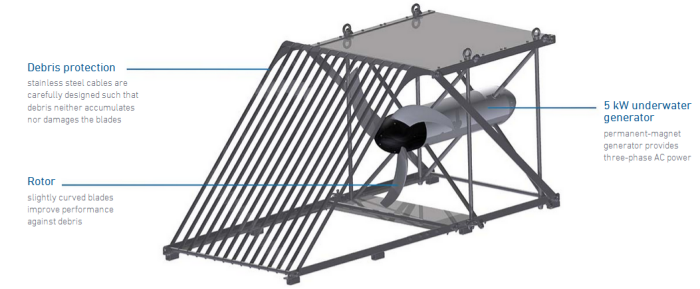

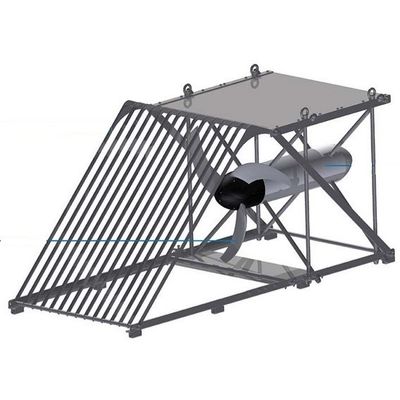

Smart - Free Stream Hydro Turbine

• very compact
• reliable base load supply for locations with lower incidence of debris
• almost no maintenance required

Anchorage dependent on:

• Hydrological characteristics (e.g. riverbed type: rock, sand, etc.)
• Ship traffic/kayak/tourism
• Amount/type of flotsam/debris

Requirements:

• Min. river depth: 1.1 m
• Min. river width: 1.2 m
• Injection point: max. 500 meters distance from turbine

• Output 250 – 5000 W
• Dimensions Length: 2640 mm
• Width: 1120 mm
• Height: 1120 mm
• Rotational speed 90 – 230 rpm
• Weight 300 kg
• Number of rotor blades 3
• Rotor ø 1000 mm

Specifications

• The permanent-magnet underwater generator provides AC power
• Expandable system with multiple turbines
• Available as an off-grid solution, grid-connected and hybrid version
• Scope of delivery and specifications can be adapted to special projects
• Max. power output at 3.1 m/s
• The turbine placed on the bottom of the river/canal
