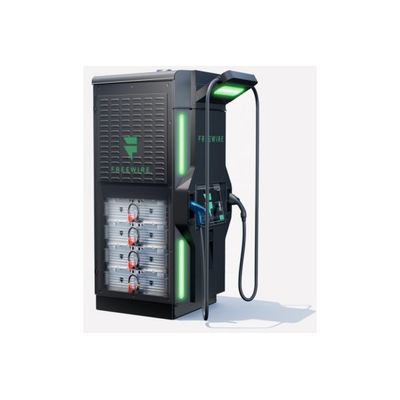

FreeWire - Model 150 -Boost Charger
Boost ChargerTM 150 makes deploying ultrafast EV charging simple and cost-effective. With integrated energy storage, efficient power conversion technology, and software that lowers energy costs, Boost Charger is the most advanced ultrafast charger available today. Boost Charger operates using a low-voltage and low-power grid connection, resulting in quick and cost-effective deployment with minimal business disruption.
INFRASTRUCTURE-LIGHT
The fully-integrated solution includes energy storage to enable ultrafast charging using existing low-power infrastructure, enabling cost-effective deployments anywhere and everywhere in a matter of hours. The space-efficient design means no unsightly and expensive electrical infrastructure.
LOWER ENERGY COSTS
Boost Charger’s integrated energy storage and proprietary management software reduce energy costs by up to 70% versus conventional solutions, while also providing resiliency and unlocking additional energy services.
PREMIUM CHARGING
Boost Charger provides ultrafast charging that delivers up to 100 miles in 10 minutes. Dual connectors provide simultaneous charging that is universally compatible with all EV models and creates a positive experience with fast, convenient charging at a low cost.
FLEXIBLE DEPLOYMENT
FreeWire’s solution is easy to scale or relocate to optimize placement and site access, ensuring maximum utilization without the risk of stranded investments.
GENERAL
- 160 kWh integrated lithium-ion battery
- CCS1 / CCS2 and CHAdeMO connectors
- Simultaneous fast charging
- 24″ touchscreen
- MET listed
- CE and UKCA mark
- OCPP compliant
INPUT
- Up to 27 kW
- 3-phase 208/400 V, or split-phase 240 V
OUTPUT
- CCS: 150 kW
- CHAdeMO: 100 kW
- Combined: charge two vehicles simultaneously at up to 75 kW each
DC/DC POWER CONVERSION
- High power efficiency
- Silicon-carbide (SiC) switching technology
