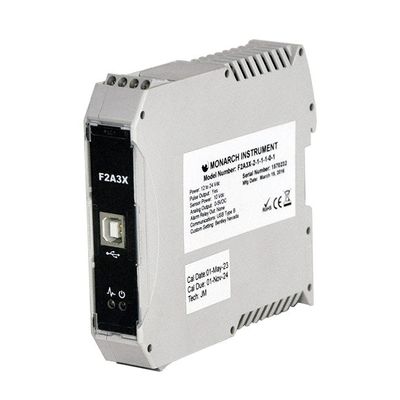

Monarch Instrument - Model F2A3X - Frequency to Analog Converter/Tachometer with NIST Certificate
The F2A3X Frequency to Analog Converter is a DIN rail module that converts a frequency input signal into a proportional analog voltage (0-5 V dc) or current (4-20 mA) output. The output signal is electrically isolated from the input signal and input power source, effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A3X is completely user-programmable using the free downloadable PM Remote Software. A NIST Traceable Certificate is included.
- Process monitoring over networks
- Tachometer signal generator
- Quality control
- R&D
- Engine performance
- Signal conditioning
- Data acquisition
- Motor or pump monitoring
- Standard DIN rail mounting
- Ethernet communications available
- 5 to 999,990 RPM range (0.083 to 150 kHz)
- Compatible with most speed sensors (TTL)
- 12 to 24 V dc input power
- Alarm setpoint with optional relay output
- Pulse repeater output
- User-configurable
- View real-time data on PC
- 4-20 mA or 0-5 V dc scalable output
- 10 V dc or 5 V dc sensor excitation
- NIST Traceable Certificate included
- Input Range: 5-999,990 RPM speeds below 5 RPM possible with multiple pulses per revolution (0.083 Hz to 15.0 kHz)
- Input Configuration and Voltage Range: 1 to 9,999 pulse per revolution or use a scale factor of 0.0001 to 99,999; PC software programmable, TTL input and 1.1 V to 25 V dc signals – Internal Jumper for ±1 to ±25 V ac
- Analog Output: Voltage: 0-5 V dc, 5 mA max load, Isolated or 4-20 mA Isolated, 500 ohms max load, Internal 12 V compliance voltage, 16-bit resolution; full scale and offset RPM ranges PC programmable
- Accuracy/Resolution: 0.005% of full scale output / 76 µvolts or 30.5 nanoamps
- Output Update: Software selectable up to 244 times/sec; dependent on the input frequency
- Memory: Max and min. recall via PC software
- Dimensions: 1/8 DIN by 3.94 in. [100 mm] deep
- Input Power: Standard 12-24 V dc, 4.5 W max or optional 12 V dc to 24 V dc isolated 4.5 W max
- Sensor Excitation: 10 V dc @ 60 mA standard or 5 V dc @ 60 mA optional
- Pulse Repeater Output: 0-5 V TTL compatible, one pulse out for each pulse in; polarity is software selectable Communications: Ethernet RJ45 or USB type B
- Alarm Capability: Optional alarm with relay output
- Setpoints: high or low alarm limit, latching or non-latching PC programmable
- Alarm Outputs: 1 form C relay contact, rated 1A at 115 or 230 V ac
- Alarm Reset: Automatic or manual reset; front panel push button or remote reset via PM Remote Software
- Environmental: Indoor use only; installation category II per IEC 664
- Temperature: -10 °C to 50 °C, operating per IEC 61010-1
- Humidity: 80% max to temps up to 31 °C, decreasing linearity to 50% RH at 40 °C
- Electrical Safety: Meets EN61010-1:2001, EC low voltage directive 2006/95/EC
*Specifications are subject to change without notice.

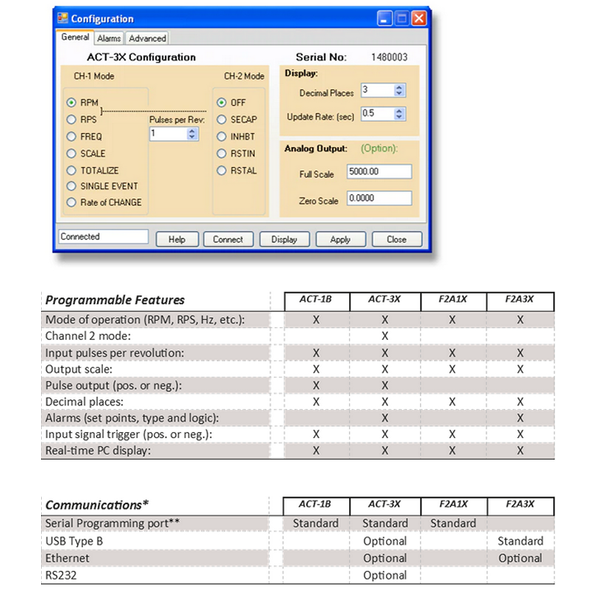

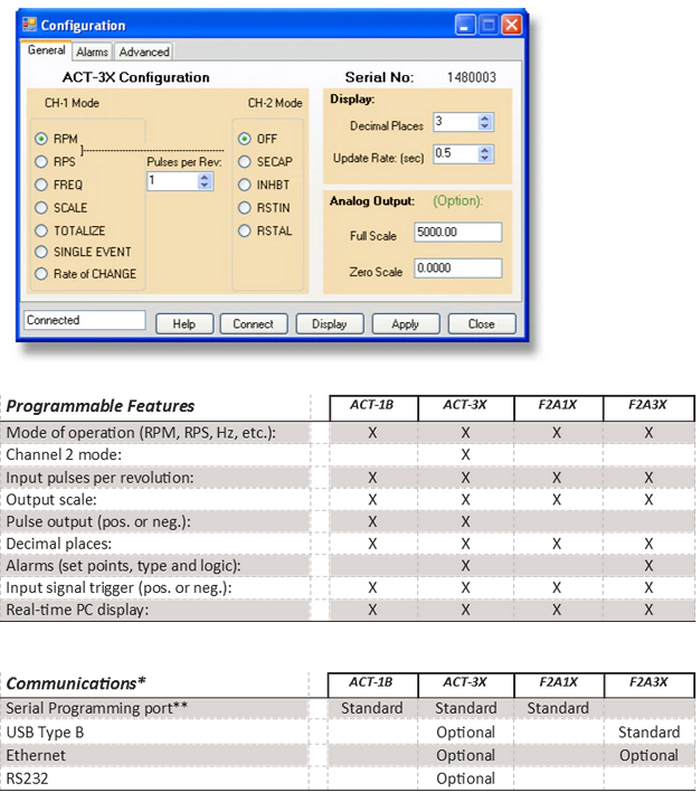

PM Remote Software is a free downloadable Windows-based software application that allows users to quickly and easily customize the configuration of Monarch’s ACT-1B, ACT-3X, F2A1X, and F2A3X panel tachometers. Set the mode of operation to RPM, RPS, or Frequency and select the input scale (pulses per revolution). Real-time data can be displayed directly on the PC along with min and max values. Decimal places and display update rates are user-configurable.
Click here for complete details and to download the software.
Features
- Allows quick setup of ACT-1B, ACT-3X, F2A1X, and F2A3X
- Display live data remotely on PC
- Unit configuration can be saved for reloading in the feature
