Froment SigmaModel 60 - Dynamometers

SHARE

Unique and innovative design features make the Sigma Dynamometer very simple, safe and easy to use. You have full control over the test with the Sigma Hand-held, with its continuous readout of power, speed, torque and torque backup or torque reserve. You can complete a test in minutes. The simple but sophisticated design means there`s no need to warm up the dynamometer or follow regular calibration procedures. Apart from the input shaft, the rotor of the burden alternator and the cooling fans, there are no moving parts in the whole Sigma Dynamometer. This means that reliability is high, and maintenance costs are minimal.

Most popular related searches

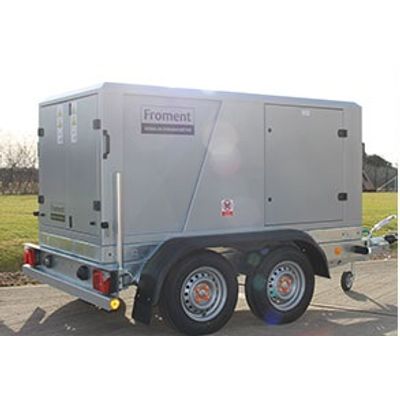

The Sigma Dynamometer can be supplied in a trailer format with lockable storage space for drive shafts and accessories, ready to run tests at any location with access to a 13amp or 16amp power supply.

Alternatively, it can be supplied as a static unit to set up a professional test cell in your workshop

  • PTO (270-1250rpm): Maximum power = 680PS (500kW) at 1000rpm, Torque= 4150Nm at 800rpm
  • Direct (480- 2200rpm): Maximum power= 680PS (500kW) at 1800rpm, Torque = 2340Nm at 1400rpm.
