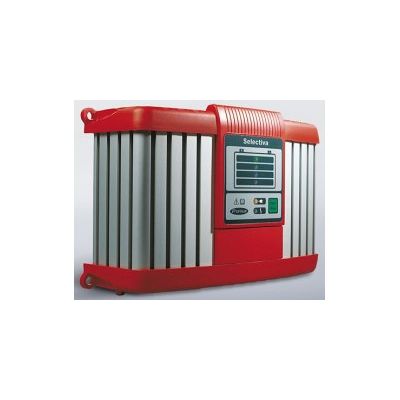

Fronius - Model SELECTIVA 1 kW -Traction Battery Charger
A new era has begun at Fronius, and it`s not just to do with appearances. The striking design is complemented by innovation and technology inside the Selectiva devices: intelligent Active Inverter Technology, serviceable modular design, `Plug & Charge` software and accompanying characteristic programming. And at the same time an increase in efficiency 96%. The status quo for battery chargers. The Selectiva charger with Active Inverter Technology gently charges your batteries and increases their service life by up to 25%. It`s efficient too: Every 7th charge is free.
Product information:
- For charging small and medium sized traction batteries
- 96% efficiency
- Indication of charging level using LEDs
- 100% serviceable – flexible modular design to make servicing, retrofitting and upgrading as easy as possible.
- Compact, lightweight design
- Based on Active Inverter Technology
- Nominal charging voltage: 12 V, 24 V
- Charging current: 10 A - 35 A
- Battery capacity: 55 - 440 Ah
- Efficiency: 96 %
- Mains voltage: 230 V +/- 15 %
- Marks of conformity : CE
- Dimensions: 245 x 90 x 155 mm (L x W x H)
- Weight: 1.9 kg
- EMC class: A
Applications:
Charging: The Selectiva charges batteries fully automatically, gently, and as rapidly as possible, until they reach their maximum capacity. Various characteristics allow charging to be optimised to suit the requirements of the application.
On-Board: Due to the compact design and light weight, the Selectiva is excellent for on-board applications.
Protective features:
- Electronic reverse polarity protection
- Thermal overload protection
- Safety cut-out
- Electronically safe
