FS Elliott - Model PAP Plus A1 -Two and Three-Stage Engineered Air Compressors
FromFS-Elliott

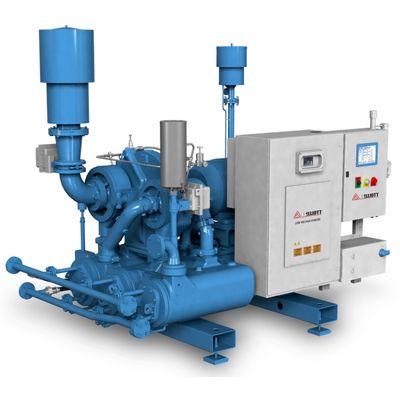

Introducing the PAP Plus A1® Centrifugal Compressor by FS-Elliott: a robust solution designed to deliver unmatched reliability and performance in air compression applications. With flexibility at its core, the A1 is offered in one-, two-, and three-stage configurations, ensuring tailored efficiency to suit diverse operational needs. Experience a consistent flow of up to 100 m3/min or 3,500 CFM, making the A1 the go-to choice for facilities compression needs.
Most popular related searches
- Flow: 45 – 100 m3/hr | 1,500 – 3,500 CFM
- Power: 190 – 595 kW | 260 – 800 hp
- Pressure: 2.75 – 15.2 barg | 40 – 220 psig
- Designed to exact specifications – from API 672 to end users’ own complex needs.
- Straight-through intercooler tube accommodates periodic cleaning, rather than replacement.
- State-of-the-art, backward leaning impeller design that provides a broad range of superior aerodynamic performance characteristics.
- Adjustable inlet guided vane adjust to plant conditions and load variations to save energy.
- Full-capacity auxiliary oil pump continues normal, safe operation in the event of a main oil pump failure.
- Filter monitoring package allows operators to receive real-time differential pressure of the oil and air filters.
- Microprocessor-based smart transmitters capable of performing evaluations and producing diagnostics allow the operator to understand the condition of their compressed air system from a remote location.
- Horizontally split gear case and internal components are integral features of the only truly field-serviceable gear box in the industry.
- Regulus Control System allows the operator to control and manage the performance of one or multiple compressors, at the unit or remotely, to meet air demands while maximizing savings.
- ISO 8573-1 CLASS 0, 100% oil-free air minimizes downtime from oil contamination in the production line and eliminates the need for off-site condensate disposal.
- Engineered coatings designed for extreme conditions provide extended service life of internal and external surfaces, reduced maintenance, and corrosion prevention.
