Fuel Cell System
From H-I-S

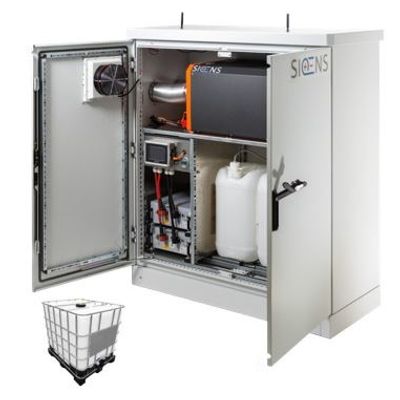

The Ecoport is based on a patented methanol fuel cell technology and is designed as a fully automatic battery charger. With 500 W of power, a single Ecoport 800 provides up to 12 kWh of energy per day. In emergency power applications, the fuel cell continuously supplies up to 800W of electrical energy. Since the consumer is connected directly to the battery, load peaks above 800W can be served without issues. Inexpensive standard methanol is used as a fuel. Compared to other fuel cells, the logistical challenges of transporting gaseous hydrogen are eliminated, while the high efficiency remains. Thanks to simple installation and plug-and-play functionality, a quick power supply can be ensured, for example on construction sites or for traffic surveillance. Three easily replaceable methanol cartridges, each with 25 l of methanol, guarantee 126 kWh supply capacity.
Technical Data
- Continuous power: 500 Watt
- Charging capacity per day: 12 kWh
- Fuel: Methanol (IMPCA, > 99,85%)
- Methanol consumption: 0,6 L / kWh
- Tank Capacity: 75 L
- Cascading: yes
- Compatible batteries: Li-NMC, LiFePo4, AGM,..)
- Recommended battery capacity (min): 2 kWh (nett)
- Installation dimensions WxHxD (mm): 1.250 x 1.355 x 550
- Weight (kg): 180
