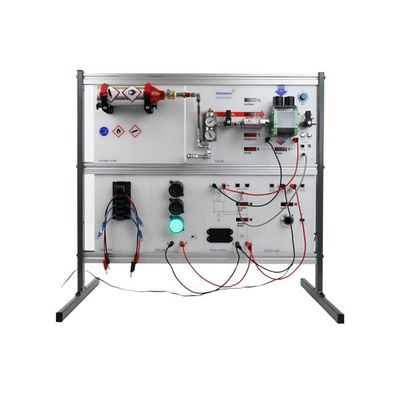

Heliocentris - Fuel Cell Trainer
The Fuel Cell Trainer is ideal for teaching the basic engineering principles of PEM fuel cell systems. Extensive experimenting capabilities and comprehensive and revised instruction material with predefined experiments make it a complete instruction package. All components of the fuel cell system are displayed individually. Integrated displays for operating parameters support the instruction. The Fuel Cell Trainer modularity allows to easily adapt the difficulty level. The system can be operated by inexperienced users. The included software enables computer aided measuring and experimentation.
A 50 W fuel cell stack with a fuel cell controller, hydrogen flow meter and air supply, as well as five LED displays for visualization of all essential system parameters (current, voltage, temperature, fuel and air supply).
Electronic Load ModuleThe electronic load enables manual or computer.assisted adjustment of constant rated currents for the fuel cell for recording characteristic curves. With LED power display.
DC/ DC Converter ModuleThe module converts the unregulated output voltage of the fuel cell to 12 V DC voltage and can be used for an autonomous power supply to operated 12 V consumers. With LCD displays for useful power and internal consumption of the fuel cell system.
Traffic Light ModuleThe LED traffic light is a realistic sample consumer on a 12 V basis at the output of the DC/DC converter.
H2 Storage ModuleThe metal hydride canister as Fuel Cell Trainer module with a two-storage pressure reducer provides convenient hydrogen supply to the fuel cell for an entire practicum day without compressed gas canisters or the hydrogen generator.
Pressure reducer for 200 bar standard compressed gas cylinders with connecting tube and adapter in two variants for direct supply of the fuel cell or filling of the metal hydride canister.
Hydrogen Generator HG30The PEM electrolyzer enables the convenient generation of hydrogen as needed. It is used instead of a compressed gas cylinder for filling the metal hydride canisters. The system has an integrated safety shut-off with leak detection.
- New design for better teaching of engineering subject
- USB interface for easy plug-and-play installation
- Improved instruction material for teachers and students
- New experimentation software and measurement data acquisition
- New quick guides for a fast introduction to the
- experiment setups and functions
Learning Objectives
- Structure and operating principle of a fuel cell system
- Thermodynamics
- Characteristic curves and efficiency ratings
- System and power electronics
Areas of Application
Suitable for lectures and hands-on training in the following areas:
- Electrical engineering
- Energy engineering
- Process engineering
- Mechanical engineering
- Automotive engineering
