Fuel Consumption Measurement for Diesel Engines
From Industries - Power Generation
KRAL fuel consumption measurement takes into account the effects of the engine system and delivers highly accurate measured values. Generators establish the guaranteed, specific fuel consumption during the warranty period. If fuel consumption is too high, this always indicates that the engine is badly adjusted or needs maintenance.
High System Accuracy.
High System Accuracy.
If a measured value is calculated from a number of individual measured values, this increases the error of the overall measurement in accordance with the Gaussian law of error propagation. With a high measurement accuracy of 0,1%, KRAL Volumeter achieve optimum system accuracy both for idling and at full load.
Multi-Engine Systems.
Power stations often have several engines. To keep the overall fuel consumption under control, operators want their fuel consumption measuring system to measure many engines. KRAL BEM 900 can clearly show the consumption of as many as 16 engines on a single display.

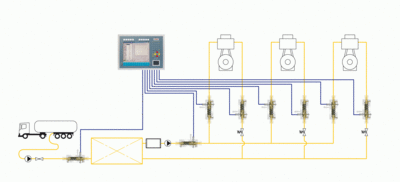

KRAL fuel consumption measurement of a multi-engin...
KRAL fuel consumption measurement of a multi-engine system with a transfer meter.

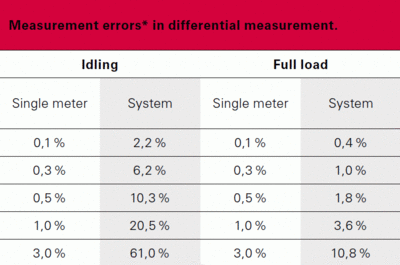

* Measurement errors vary with the circulation rat...
* Measurement errors vary with the circulation rate. Here: idling 20, full load 4. We will gladly calculate your application on request.
