Fuel Delivery Tankers

SHARE

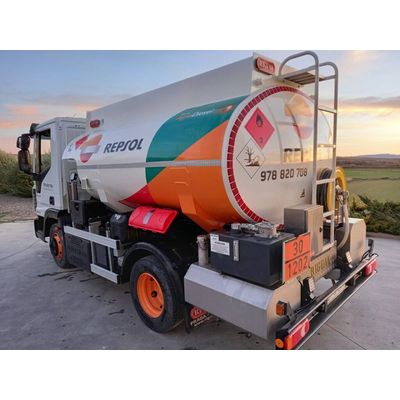

Rigual delivery tanks are approved equipment in accordance with the ADR regulations in force for the transport of fuels. During their manufacture, they are subjected to quality controls, radiographic welding, pressure tests and any other test or inspection necessary for their registration. Rigual tanks are equipped as standard with components (pumps, meters, distributors, etc.) of the highest quality and performance on the market.

Most popular related searches
transportation fuel
fuel tanker

The reels and spools are RIGUAL’s exclusive design and adapt perfectly to our bodies:

  • Single or double radial winder on front visor.
  • Axial winder in side box or rear hood.

Multiple options depending on the application, need or chosen chassis.

Both supply equipment and winders can be protected in shutter boxes, bus type doors, …

Main product specifications

  • Manufactured in aluminium EN-AW-5182 (s/ Standard EN 14286:2008).
  • AT or FL certification depending on the type of fuel to be transported.
  • Top or bottom loading CLH.
  • Capacities from 6000 to 20000 litres.
  • Capacities and compartments to be defined according to chassis tonnage and customer requirements.
  • Axial or radial winders manufactured by Rigual with layout and quantity according to customer requirements.
  • High penetration and high quality electrostatic painting.
  • Own design of the tank and its main components.

Type 1

  • Capacity:6,000 litres
  • Compartments: 2
  • Bomba y Boquerel: Alfonsh Haar 400 L/min, ZVA-32.
  • Counter: Electronic.
  • Winder: 1 on visor, side or rear hood.
  • CLH loads: No, Optional: Yes.
  • Chassis: Recommended MMA 10 Tn.

Type 2

  • Capacity: 7000-8000 litres
  • Compartments: 2, Optional 3
  • Pump and Nozzle: Alfonsh Haar 400 L/min, ZVA-32 or ZV-40.
  • Counter: Electronic
  • Winder: 1 on visor, side or rear hood. Optional 2 winders.
  • CLH Loads: Yes, Optional No
  • Chassis: Recommended MMA 13 Tn

Type 3

  • Capacity: 10,000-11,000 litres
  • Compartments: 3, Optional 2
  • Pump and Nozzle: Alfonsh hair 400 L/min; ZVA-32, ZV-40
  • Counter: Electronic
  • Winder: 2 on visor, side or rear hood
  • CLH Loads: Yes, Optional No
  • Chassis: Recommended MMA 16 Tn

Type 4

  • Capacity: 12,000-13,000 litres
  • Compartments: 3, Optional 2
  • Pump and Nozzle: Alfonsh hair 400 L/min; ZVA-32, ZV-40
  • Counter: Electronic
  • Winder: 2 on visor, side or rear hood
  • CLH Loads: Yes, Optional No
  • Chassis: Recommended MMA 18 Tn

VERY COMPACT EQUIPMENT.

  • High manoeuvrability.
  • Versatility of configuration and ease of driving.
  • The tanks in this range are very compact and designed for use in urban areas with narrow streets.
  • Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
  • As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer`s needs.

COMPACT EQUIPMENT.

  • High manoeuvrability and ease of driving.
  • Configuration versatility.
  • The tanks in this range are compact and designed for use in urban areas close to the customer`s base to optimise short routes.
  • Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
  • As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer`s needs.

MEDIUM CAPACITY EQUIPMENT

  • Good manoeuvrability and driveability.
  • Configuration versatility.
  • The tanks in this range are of intermediate capacity and are designed for use in urban areas close to the customer`s base as well as for optimising short and medium routes.
  • Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
  • As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer`s needs.

HIGH CAPACITY EQUIPMENT

  • Good manoeuvrability and driveability.
  • Configuration versatility.
  • The tanks in this range are characterised by their high capacity and are designed for use in urban areas close to the customer`s base as well as for optimising medium and long routes.
  • Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
  • As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer`s needs.

VERY HIGH CAPACITY EQUIPMENT

  • Manoeuvrability and driveability.
  • Configuration versatility.
  • The cisterns in this range stand out for their very high capacity, designed for
  • to circulate in urban areas with wide avenues as well as to optimise long routes and to serve consumers with high-capacity depots.
  • Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
  • As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer`s needs.
