AXI International
AXI - Model FPS DX-S -Fuel Maintenance System

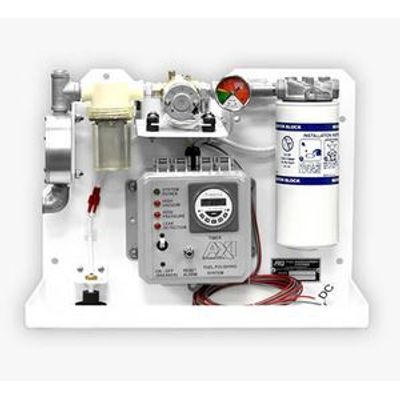

The FPS DX-S is a programmable, fully automated, fuel maintenance system that removes water, sludge, and other contaminants from fuel storage tanks through routine filtration. The system’s compact design allows for tight indoor installations such as inside gen-set enclosures or engine rooms. With a 1.3 GPM flow rate, the FPS DX-S can polish up to 640 gallons (2,423 liters) of fuel in a runtime of 8-hours.
Most popular related searches
fuel maintenance system
fuel storage tank
fuel system maintenance
contaminated fuel storage
fuel storage
fuel conditioner
fuel polishing
fuel tank
fuel contamination
fuel removal
- System Features: Automated Filtration
- Establish a fuel polishing runtime schedule with up to three start and stop times for each day of the week
- Smart System Alarms Automatic system shutdown with notifications of needed maintenance or system faults
- Nominal Flow Rate 1.3 GPM/80 GPH (5 LPM/302.8 LPH)
- Primary Filter 10μ Particulate Fine Filter or 3μ Water Block
- Strainer 50 Mesh Basket Strainer
- Fuel Conditioner LG-X 500 Inline Magnetic Conditioner
- Pump DC Gear Pump
- System Controller Smart Filtration Controller with Safety and Alarm Features
- Power 12VDC/10A or 24VDC/5A
- Plumbing Stainless Steel
- Ports 1/2” Hose Barb In, 1/2” Hose Barb Out
- Construction Powder Coated Aluminum Back Plate
- Dimensions ≈ 15” x 18.5” x 7.5” (38 x 47 x 19 cm) (H x W x D)
- Weight ≈ 20lbs. (9.1kg)
- Automatically removes contaminants from fuel storage tanks through user-scheduled filtration (1.3 GPM flow rate)
- Notifies users of routine maintenance or system faults such as needed filters changes or flow restrictions
- Compact design for tight indoor installations
- Drip tray with built-in leak detection
