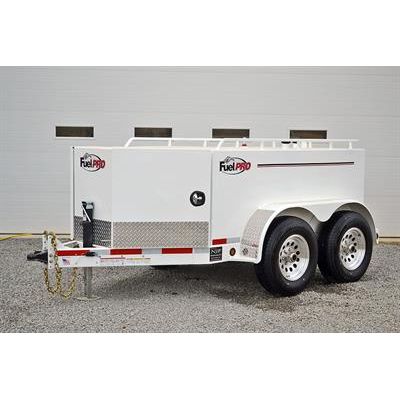

FuelPRO - Model 500 - Fuel Trailer

TRAILER

• Custom 6” C-Channel Chassis
• Dexter Torsion Axles with EZ Lube Hub
• New 16” D Range Tires
• Conduit Wrapped Wiring
• 7,000 lb Commercial Jack
• Adjustable 5 Position vertical 2-5/16” ball hitch or pintle hitch

FUEL DELIVERY SYSTEMS

• 25 GPM, 12 Volt DC Industrial Grade Pump
• Deep Cycle Interstate Battery
• 18’ of 1” Hose with Auto Trip Nozzle
• Fuel PRO 20 Micron Fuel Filter
• Lockable Vented Fuel Cap
• Tank Pressure Relief Vent
• At-A-Glance Fuel Gauge

FUEL TANK

• 7 Gauge Steel
• Double Seam Welded
• Internal Fuel Surge Baffles & Cross Bracing
• 6” Deep Drop Sump with 1/2” Drain Plug
• Fuel Shut Off Valve
• At-A-Glance Fuel Gauge
• Lockable Vented Fuel Cap
• Tank Pressure Relief Vent

ADDITIONAL OPTIONS

• Alumuinum Wheels
• Custom Paint Color
• Solar Charging Panel
• Spare Tire
• Hydraulic/Electric Jack
• Grounding Cable

SAFETY

• Manufactured to DOT Specs
• Heavy Duty Safety Chains and Hooks
• Digital Breakaway and Electric Drum Brakes
• Roll Over Railing
• LED Side and Rear Lighting

FINISH

• Standard White Color
• 2 Coats Acrylic Enamel Paint with
• Industrial Tuff Coat Alkyde Primer
• LED Side and Rear Lighting
• DOT 1993 Placards

FUEL DELIVERY OPTIONS

• Fuel Pump Meter and Swivel
• Fuel PRO 10 Micron Fuel Filter

500 Base Model

• Tank Size: 500 Gallon
• Tank Thickness: 7 Gauge
• DOT Compliant: Yes
• Torsion Axles: dual 3,500 lbs
• Hubs: 6 lug
• Electric Brakes: Yes
• Tires: 16" D Range
• Fuel Baffles: 2
• Frame: 6"
• L/W/H: 11`6" / 5`10" / 4`8"
• Empty Weight: 2,000 lbs
• GVWR: 7,000 lbs

500 Front Box Model

• Tank Size: 500 Gallon
• Tank Thickness: 7 Gauge
• DOT Compliant: Yes
• Torsion Axles: dual 3,500 lbs
• Hubs: 6 lug
• Electric Brakes: Yes
• Tires: 16" D Range
• Fuel Baffles: 2
• Frame: 6"
• L/W/H: 11`6" / 5`10" / 4`8"
• Empty Weight: 2,200 lbs
• GVWR: 7,000 lbs
