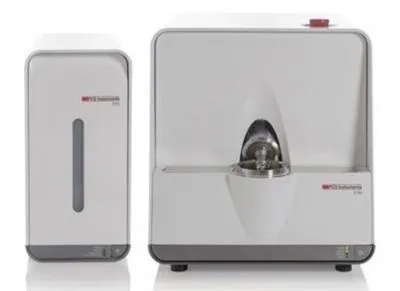

PCS - Model ETM - PCS-003291 - Fuels and Lubricants Testing Instruments
FromPCS Instruments
Peak Hertzian contact pressures typically range from 1.8 GPa in gears and cams to 3.5 GPa in rolling bearings and toroidal traction drives. The PCS-ETM enables tribological phenomena to be studied over the full range of pressures.
Most popular related searches
- Measurement of the formation and removal of anti-wear tribofilms at high contact pressures
- Studying the influence of very high shear stresses on lubricant/material chemistry (mechanochemistry)
- Scuffing testing of lubricants, materials and surface finishes
- Characterisation of lubricant properties for traction drive applications
- Exploration of friction modifier behaviour at realistic contact pressures
- Load 100N-1650N
- Contact Pressure Up to 3.5 GPa with standard 52100 steel specimens
- Temperature Up to 150°C
- Speed -3.5 to 3.5m/s
- Slide/Roll Ratio 0 to 200%
- Power Supply 100 - 240 Vac
- Test Sample Volume 35 ml (10ml with pot filler)
