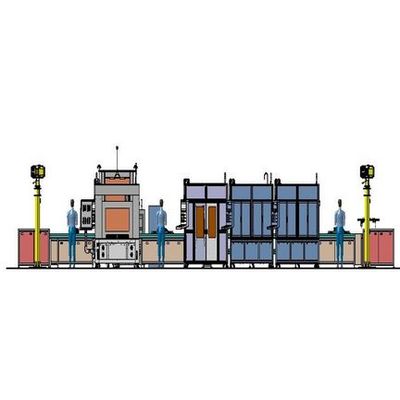

Huiyao - Fully Automatic Assembly Line Lithium Battery Module

1. Equipment capacity: ≥10PPM;
2. The final excellent rate is ≥99.8% (only the bad products caused by the equipment);
3. Equipment failure rate ≤ 2%;
4. Compatible with a variety of size module specifications, quick change. Laser output power stability (fluctuation) ≤±1%, the focal length of the galvanometer can be digitally displayed and adjusted, the range is -5.0~+5.0mm, and the adjustment accuracy is ≤0.5mm;
5. The welding track is edited by welding software, the welding process is automated, the parameters can be modified, and the operation and modification authority can be set

Name: Parameters

• Power supply: AC220V/50HZ
• Air supply: 0.5-0.7Mpa
• Size: L2600mm*W1250mm*H1800mm
• Working temperature: 5-40°C
• cleaning range: X/Y(mm): 300/30Omm
• gluing range: X/Y(mm): 300/30Omm
• Moving speed: X/Y/Z(mm/set):300mm
• repeat accuracy: ±0.02mm
• Weight: About 650KG
• glue ratio: 1:1
• AB mix: Dynamic mixing
• gluing accuracy: 0.02g,Tne error ratio does not exceed ±5%
• Robot system: BORUNTE 4 axis Robot
• Operating mode: point-to-point/continuous line segment
• Gluing system: HY
• Control system: HY
• Pneumatic Components: Airtac
• servo motor: Panasonic Servo System
• Photoelectric Sensors: Omron
• Power: MEAN WELL.HENGFU
• Ball screw: TBI
• Linear Guides: HIWIN
• Frame: Fangtong welding mechanism, countertop soldering iron block, gantry milling
• sheet metal: Sheet metal fully enclosed structure, transparent window
