Fumex AB
Fumex - Vehicle Exhaust Gases
FromFumex AB

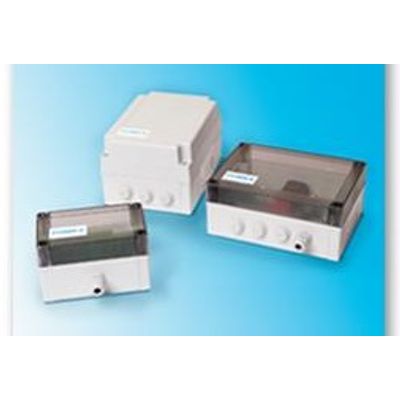

Control units for improved working environments and lower energy consumption. Control units comprise specially adapted and tested components. A well designed system provides important benefits for the user; Automatic systems provide energy savings. Lowest possible noise level. The control voltage is 24V.
Most popular related searches
frequency converter
junction box
energy consumption
energy saving
voltage control
voltage controller
rotary frequency converter
rotary converter
To help find the right system, a number of ready solutions are available, including:
- Fan start and stop, with/without speed control
- Fan start and stop, with switch
- Individual damper control, plus fan start and stop via switch
- Individual damper control, plus demand-based fan control via a pressure sensor and frequency converter
Control can be manual or automatic, with or without time delay.
- Frequency converter, SFC
- Infinitely variable speed adjustment of fans, etc.
- Fumex can supply pre-programmed frequency converters for simple installation
- Potentiometer, SFC POT
- For manual, infinitely variable fan speed adjustment via a frequency converter
- Rotary switch, SFC VSS
- For 2-stage fan speed adjustment via a frequency converter
- Switch, SFC SB
- For fan start/stop via a frequency converter
- Pressure sensor, ST 300
- Uses a frequency converter to achieve a constant negative pressure in exhaust air channel
- Always provides the correct airflow regardless of the number of open and closed dampers
- Control unit, S 200
- For automatic damper motor and/or fan control
- Adjustable timer card for run-on times longer than 30 sec as an accessory
- Control unit, S 400
- For automatic damper motor control
- Pre-set run time for evacuation of remaining gases; 0 – 15 min
- Transformer unit, S 600
- Used for supplying 24 VAC to S 400
- Fan control via external switches
- Can be used in a separate system together with SKD junction box and KHT 600 switch kit or SMT 60 mechanical time switch.
- Protective motor switch, SMB
- 3-pole with thermomagnetic tripping action
- For operating and protecting fan motors
- Switch, SKO
- 3-pole with time delay overcurrent relay for manual resetting
- Automatic damper, SAS
- Rotary damper for applications requiring short run times
- The damper blade takes 7.5 sec to open, which means 95% suction capacity after 3 sec
- Airtightness class 1 as standard
