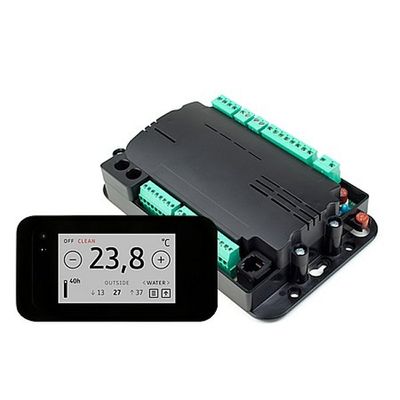

FUMIS Alpha - Biomass Combustion Controller

It’s distinctive, user friendly design, the unique autonomy prediction and customization options help stove manufacturers differentiate their products from competition.The use of Flow-Control combustion control make devices with FUMIS ALPHA more efficient, saving fuel and diminishing emissions. With Flow-Control the device operates at optimum efficiency regardless the fuel quality and installation conditions (the actual chimney draught) without fine-tuning at installation.

FUMIS ALPHA controller helps customers decrease combustion device production and logistics costs with its 12 pre-programmed configurations and easy-to-mount features.

Pre-programmed configurations:

1. Basic Pellet Stove
2. Pellet Stove with 2nd Ambient Fan
3. Water Stove with automatic chamber cleaning
4. Basic Pellet Boiler
5. Pellet Boiler with automatic chamber cleaning
6. Pellet Boiler with Back Water management
7. Pellet Boiler with automatic combustion chamber and ash extraction
8. Basic Pellet Burner
9. Pellet Burner with water pump management and compressed air cleaning
10. Basic Firewood Boiler
11. Combined Boiler (Firewood/pellets) with automatic chamber cleaning
12. Firewood boiler with back water management


• Set ALPHA 40-230 (115V optional) 6 inputs/4 outputs :The set consists of an Alpha 40-230 control unit, a user interface, a “control unit to user interface” cable and sensors (NTC for air/water and a K-type thermocouple for flue gasses).
• Set ALPHA 41-230 (115V optional) 6 inputs/4 outputs :The set consists of an Alpha 41-230 control unit, a user interface, a “control unit to user interface” cable and sensors (NTC for air/water and a K-type thermocouple for flue gasses).
• Set ALPHA 42-230 (115V optional) 6 inputs/4 outputs : The set consists of an Alpha 42-230 control unit, a user interface, a “control unit to user interface” cable and sensors (NTC for air/water and a K-type thermocouple for flue gasses). The flow of combustion air may be regulated with an additional sensor (FlowTronic).
• Set ALPHA 60-230 (115V optional) 11 inputs/6 outputs :The set consists of an Alpha 60-230 control unit, mounted in the protective housing, a user interface, a “control unit to user interface” cable and sensors (NTC for air/water and a K-type thermocouple for flue gasses). The flow of combustion air may be regulated with an additional sensor (FlowTronic).
• Set ALPHA 65-230 (115V optional) 12 inputs/6 outputs :The set consists of an Alpha 65-230 control unit, mounted in the protective housing, a user interface, a “control unit to user interface” cable and sensors (NTC for air/water and a K-type thermocouple for flue gasses). The flow of combustion air may be regulated with an additional dP sensor integrated into the control unit.
• Set ALPHA 70-230 (115V optional) 11 inputs/7 outputs : The set consists of an Alpha 70-230 control unit, mounted in the protective housing, a user interface, a “control unit to user interface” cable and sensors (NTC for air/water and a K-type thermocouple for flue gasses). The flow of combustion air may be regulated with an additional sensor (FlowTronic).
• Set ALPHA 75-230 (115V optional) 12 inputs/7 outputs :  The set consists of an Alpha 75-230 control unit, mounted in the protective housing, a user interface, a “control unit to user interface” cable and sensors (NTC for air/water and a K-type thermocouple for flue gasses). The flow of combustion air may be regulated with an additional dP sensor integrated into the control unit.
