Durag - Model D-FS2 -Furnace Sensor
FromDURAG GROUP

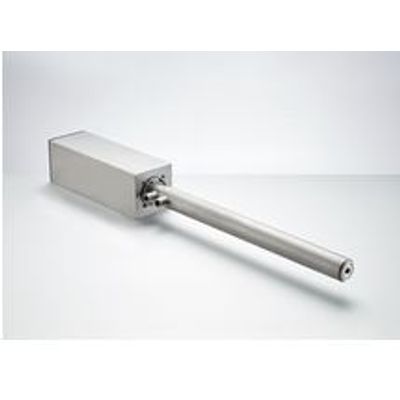

The digital furnace sensor D-FS2 delivers high definition live images directly out of the combustion chamber. The D-FS2 VIS with high resolution colour video is available as water or air cooled version. The furnace sensor D-FS2 is designed for the use with a retraction unit. All versions can be extended with the D-VTA 200 software to a thermography and analysis system.
Most popular related searches
furnace sensor
combustion chamber
furnace
furnace camera
waste incineration
industrial waste incineration
waste incineration plant
incineration waste
incineration
incinerator
- Digital (GigE) video output
- Water or air cooled for up to 2000°C in the combustion chamber
- Angled version available
- Special endoscope with high optical resolution
- Different lengths and field of views available
- For integration in the D-VTA 200 Thermography Analysis System
- Brilliant live images
Special endoscope delivers the image in high resolution out of the combustion chamber to a modern digital camera - live video in real-time
- Detection of radiation changes
Due to the manually, remotely controlled exposure time radiation changes of the process or the flame can be detected immediately
- High availability
The furnace sensor is designed to be inserted continuously (24/7) in the combustion chamber
- Safe and reliable
In case of cooling or power failure the optional retraction unit will automatically retract the furnace sensor
- Flexible system
Optional upgrade with thermography and analysis modules, adaptation to the application possible
- Power stations
- Chemical industry
- Refineries
- Cement plants
- Waste incinerators
