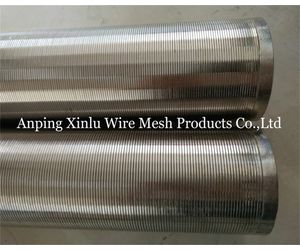

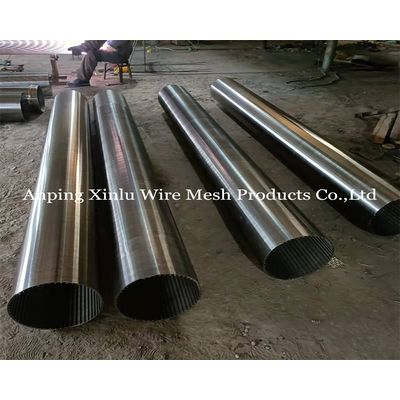

FY-XL - Model 06 -Heat Pump Water Well Screen
water Well Screen for Heat Pump Applications of the Water Well Screen This product is specifically designed for geothermal air conditioners for pumping water into and out of the ground. Custom Solutions Tell us your required specifications in regards to outside diameter, slot size, length and open area percentage, and we will produce wedge wire screens to fit those requirements and your needs. Order Information Screen materials: stainless steel, galvanized carbon steel, carbon steel with plastic coating, or custom materials Slot size: 0.1mm-15mm Diameter (inches): 2,3,4,5,6,8,10,12,14,16,20. 29mm-1000mm Length: 2.9m, 5.85m. The maximum length is 6.05m. Connection method: beveled, circumferentially welded, or threaded connections Main Specifications Outside Diameter Inside Diameter Slot Size Percentage of Open Area Length 117mm 104mm 0.25-2mm Above 11% Up to 6.05m 168mm 156mm 0.5-2mm Above 14% Up to 6.05m 219mm 205mm 0.5-2mm Above 14% Up to 6.05m 273mm 259mm 0.5-2mm Above 14%
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens
Wedge Wire Screen Filter Pipe Introductions
1. Characteristics: Welded Wedge Wire Filter tube is composed of profile wire and support wire. support wire can be round wire, triangle wire, trapezoid wire or wedge wire. profile wire can be triangle wire(V-shaped wire), with fine slot size and high filtering precision, with firm structure, high temperature and corrosion resistance,good mechanical properties, long service life, safe and reliable characteristics and so on, water well screen/strainer tube/water filter pipe can be used in a variety of media filters.
2. usage: water well screen/strainer tube/water filter pipe is water treatment equipment with holes. it can be used with deep well pumps or submersible pumps together; it can be also used for water treatment equipment, environmental protection, desalination processing of transferring sea water to industrial water and domestic water, running water treatment, water slottening process and petrochemical industry:terminal filtration for petrol products, filtration for chemical acid and soda liquid, and recovery filtration for alcohol and other organic solvents.
3. continuous slots significantly increase increase discharge area,thus providing greater access to water-bearing zone.we can produce this pipe with diameter 29mm-1000mm,slot size 0.05mm-30mm,length 50mm-5850mm.
