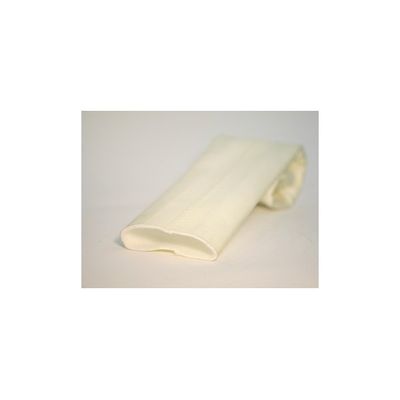

Gadmon - Model Downpipe -Elastic Pipelining Liner
Got to line a vertical downspout or stack ? Worried about the weight of resin on standard liner thickness. Need something thin but flexible? Got to transition in size from 2`- 3` or 3` - 4` ? Yep we got it! Want to use polyester, epoxy or silicate resin with it? No problem. This thin walled elastic Liner is great for Vertical down pipes and gutters. Due to its elastic knitted base material, the liner will effortlessly fly round multiple bends, even when double inverted with a combo cal tube. Upstream, Downstream, Blind shot ? Does not matter with this product. Manufactured in 3`,3,5`,4` sizes with non-structural finished thickness of 1.5-2.0mm thick.
Most popular related searches
- Sizing: 3, 3.5, 4,5, 6" (75, 87.5,100,125, 150mm)
- Coating Type: Soft PU/PVC Blend
- Inversion Resistance: Low
- Burst Pressure: Medium
- Resins: Most Epoxies, Polyesters, Silicate
- Temp resistance: 50 deg C(120 deg F)
- Seam Type: Stitched + Welded Tape
- Thickness: 1.5-2.0mm
- Bends Ability: 120 deg
- Possible Methods: Direct Inversion. Invert and Invertjnvert and Inflate, Double Inversion
