KraftPowercon - Model DCKraft Series - Galvanically Isolated 200 Kw DC/DC Converter Module
DCKraft™ for Marine and Landbased Fuel Cells. DCKraft is a new developed solution for customers who want to maximize the output from the Fuel Cell, with a compact design and highest possible reliability. The DC/DC converter — DCKraft — has galvanic isolation between input and output which protect the Fuel Cell from dangerous electric disturbances and create a safe and simple scalability.
- Galvanically isolated: +97 % efficiency
- Scalable: up to 10 MW with 200 kW modules
- Fuel Cell Adaptable: Suitable for existing Fuel Cell Modules
Galvanic isolation
The isolated DC/DC converter is vital for integrating Fuel Cells, protecting them from ground faults on the connected DC bus. It uses a transformer to block direct current flow while still allowing power transfer.
Scalable
up to 10 MW with 200 kW modules.
Complete factory tested

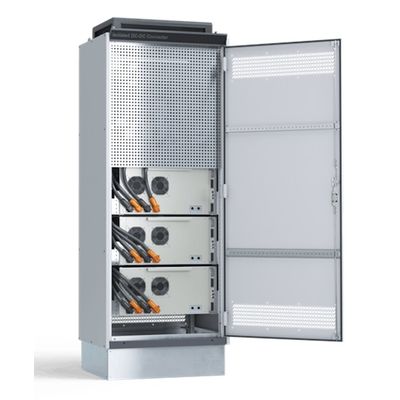

DCKraft comes as a factory-tested power module or integrated into a cabinet, with DNV approval and CE marking.
- Input voltage: 360-1200 VDC*
- Number of modules: Scalable up to 10 MW
- Input current ripple: <2% peak-peak
