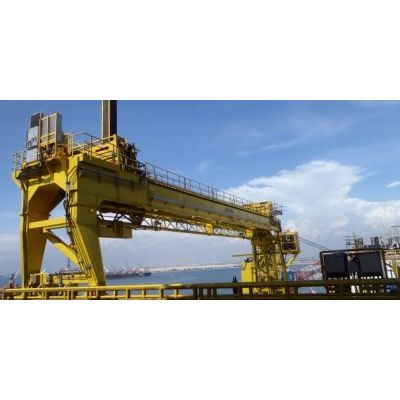

TSC - Gantry Crane
TSC gantry cranes deliver solutions for moving riser and drilling tubulars from the storage area to the catwalk. Gantry cranes can be designed and manufactured with toe hook tools for risers, pipe grabs or magnets.
- Two main types: fixed main hoists for dedicated riser handling and traveling auxilary hoists for general use
- Traveling main hoists use interchangeable heads, for handling all tubulars
- Weight (Te) : 80 -160
- Capacity (Te) : 2 x 12.5 to 2 x 30
- Lift Speed (m/min) : 12
- Travel Speed (m/min) : 16
- Span (ft) : 60 -100
- Lift Height : To suit application
