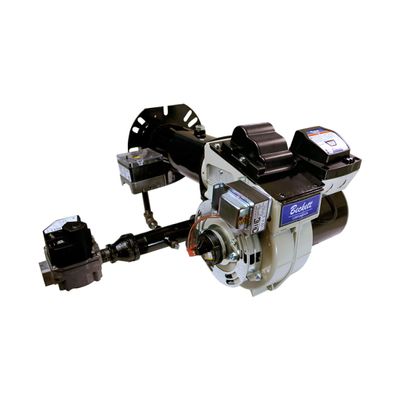

Model CG10-24 - Gas Burner 300 to 1,200 MBH | AC Power
The Beckett CG10-24 gas burner’s design and technically advanced components meet increasing demand for improved performance in high-efficiency appliances in light commercial/industrial applications. Our CG10-24 series utilize a proven combustion technology and our chassis coupled with a welded insertion make a perfect match to your application. UL/cUL & CSD-1 Standard, Cast Aluminum Housing for robust construction and quite operation, Ventless gas trains standard, Direct spark ignition, 1/3 HP Burner Motor, 120 V Standard, Removal gas gun assembly for ease of service and adjustment, Right or left hand gas train connection, Remote mounted control panels available
Input Firing Range*: 300 – 1200 MBH
Firing Mode: On-Off or On/Off with Low Fire Start
Fuel:
- Natural Gas:0.64 Specific Gravity
- Gas (LP): 1.53 Specific Gravity
Required Input Gas Supply Pressure:
- 3.5″ WC minimum
- 14″ WC maximum
Input Voltage**: 120 Vac + 10% / -15%; 60 Hz Input
Input Current: 4.8 Amp
Gas Train: UL Standard 24V
Burner Control: Beckett 7590C Direct Ignition
Flame Detection: Flame Rectification
Igniter: Beckett 7474002 Gas Igniter
Motor: 1/3 HP, 3450 RPM 120 volt/ 60 hz, single phase
Combustion Air Proving: Differential Pressure Switch
Weight: 40 lbs.
Mounting Orientation: Up to 90° from upright with motor shaft horizontal
Dimensions: 11.8″ x 13.5” x 20.6”
Acceptable Ambient Temperature Range: -4°F to +104°F
Acceptable Ambient Humidity: 5% – 95% RH non-condensing
The Beckett CG10 Gas Burner pairs with the following Commercial Products:
-
- Commercial Oil/Gas Burner Motors
- 21341U – Split Phase (1/3HP; 3450RPM; 120Vac)
- Commercial Oil Burner Pumps
- Suntec: 21188U – B2YA-8916 (2- phase; 7GPH@100psi)
- Suntect: 21369U – B2TA-8248 (2- phase; 8GPH@100psi)
- New York City Oil Pumps/DAR Kits: 51871U – B2TA-8248/DAR Mounted (single phase; 8GPH@100psi)
- Transformer & Electronic Igniters with base plate
- 51824U – Igniter with Beckett ‘S’ Base
- 51840U – Igniter with Carlin 200 Base
- Commercial Oil/Gas Burner Motors
