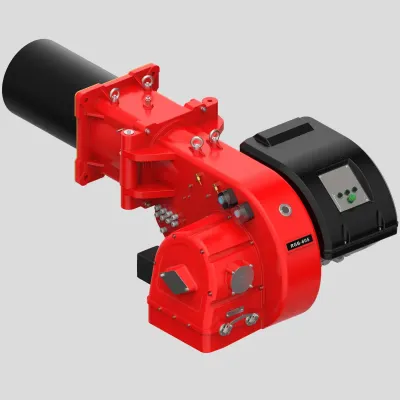

Raadman - Model RGB-605 -Gas Burners
Heat Rated Output : 850-6200 / 731-5335 : (kW) / (Mcal/h. NOx Class : II. Turn Down Ratio : 1:7. G20 Gas Rated Output : 850-6200 : kW. G20 Gas Flow Rate : 85-620 : m3/h.
Most popular related searches
- G25 Gas Rated Output : 850-6200 : kW
- G25 Gas Flow Rate : 99-721 : m3/h
- LPG Rated Output : 850-6200 : kW
- LPG Gas Flow Rate : 29-198 : m3/h
- Light Oil Rated Output : kW
- Light Oil Flow Rate : kg/h
- Heavy Oil Rated Output : kW
- Heavy Oil Flow Rate : kg/h
- Gas Line Pressure (Low Pressure) : 193-360 : mbar
- Gas Line Pressure (High Pressure Type) : 1.5-4 : bar
- Input Gas Pipe Size (Low Pressure) : DN65-Rp2
- Input Gas Pipe Size (High Pressure) : DN65-Rp2 :
- Electric Power Supply Phase : 3 : ph
- Electric Power Supply Frequency : 50 : Hz
- Electric Power Supply Voltage : 380-400 : V
- Fan Electrical Motor Power : 15 : kW
- Fan Motor Speed : 2900 : rpm
- Pump Model
- Pump Motor Power : kW
- Pump Motor Speed : rpm
- Gas Operation Mode : Double stage :
- Oil Operation Mode
- Centrifugal Fan : 363x103x42 : mm
- IP (With reference to ISIRI 2868) : 43
- Total Dimension : 1671x1035x741 : mm
- Weight : 228 : Kg
