Texol - Model TOC - Gas Generator

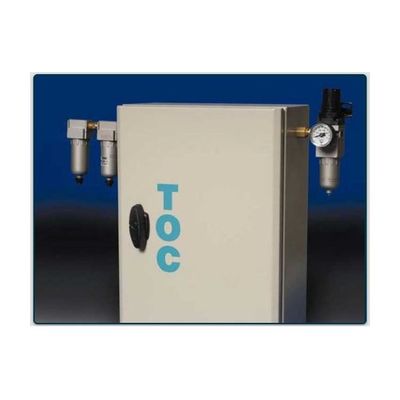

The TOC gas generator with Total Organic Carbons (TOC) and Carbon Dioxide (CO2) removed is essential for many industrial and laboratory applications, particularly TOC Analysers, and leads to improved process quality, reduced equipment downtime and lower operation costs. It removes the TOC, the CO2 and the moisture content from compressed air streams. It is available as an integrated unit with filter regulators and buffer tank, or as an OEM module for integration into customer systems. Texol TOC generators negate the requrement and the inconveniance of a gas cylinder system.
- Ozone generation feed gas
- Environmental chambers
- Analytical instruments and analysers
- Air bearings, pneumatic motors and actuators
- Spectrometer and optical purging
- Dilution air for emissions monitoring
- NMR, auto samplers and other laboratory applications
- Flow rate (l/min): 3
- Dewpoint:-73
- Inlet Pressure (Barg/PSIg): 50-100 / 3.45-6.89
- Height(mm): 24.1-40
- Width(mm): 11.4-30
- Depth(mm): 10.2-15
- Weight(Kg): 2.3-8

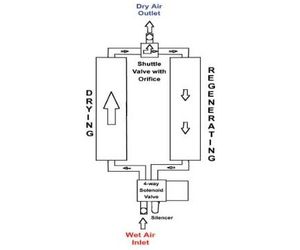

Air from an external source enters the generator via the inlet filters. Air then enter the first desiccant chamber via a solenoid valve. After passing through the desiccant chamber the now dry and CO2 free air exits the system via an outlet filter and regulator. A portion of the outlet air is diverted into the second desiccant chamber to purge it ready for use. At regular intervals the active tower switches allowing each tower to be purged in turn.
- Flow Rates of up to 3L/min
- Less than 1 ppm CO2 in output air
- Output Dew point of less than - 70°C
- PSA technology
- Output Pressure 3.5 to 8.5 barg (50 to 125 psig)
- Easy Installation
- Simple maintenance
Utilising Pressure Swing Adsorption (PSA) technology our TOC generator provide ideal performance, efficiency and reliability. Ultra dry air containing less than 1ppm of CO2 free of TOC (Total Organic Carbons) is delivered as required. The design of the scrubber allows it to be easily wall or stand mounted.
Our TOC generator provides flexibility to match your system requirements. The system can deliver a variety of flow rates and pressures to suit your specifications.
Our high purity TOC gas generator that provides flexibility and outputs of up to 3L/min.
- Ultra-dry air to –40C (-40F) or -70ºC (-94ºF) ADP
- Flow of up to 4.07 Nm3/hr (67 l/min) at pressures of up to150 psi (10.35 Bar)
- Auto regeneration process
- Non-corroding purge silencer
- Compact and lightweight
