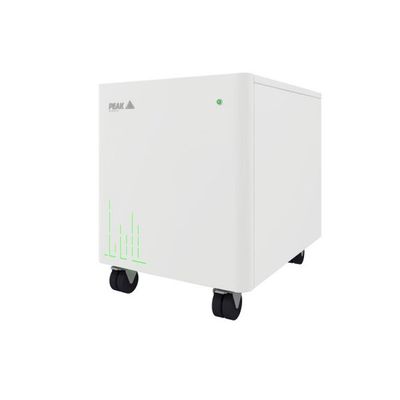

Genius - Model XE SCI 2 -Gas Generator
Developed in collaboration with SCIEX for the next generation of SCIEX mass spectrometry systems, the Genius XE SCI 2 gas generator is a cutting-edge evolution in laboratory gas generation combining advanced technology with refined and robust engineering. A premium standalone nitrogen and air solution for the new SCIEX Triple Quad 7500 LC-MS/MS System– QTRAP Ready. Genius XE SCI 2 also supports the higher gas flow requirements of the recently released Echo MS System*.
Featuring Multi-Stage Purification™ and next-generation integrated compressors with Electronic Compressor Optimization™ (ECO) technology, Genius XE SCI 2 delivers a reliable and cost-efficient source of both nitrogen (Curtain Gas™) and clean, dry oil-free air for source and exhaust gas at flows and pressures configured to meet the SCIEX 7500 System and Echo® MS System requirements. With a once annual service schedule and a compact footprint, to fit under most lab benches, Genius XE SCI 2 is a convenient solution for SCIEX users, maximizing uptime and productivity.
*Echo and Echo MS are trademarks or registered trademarks of Labcyte, Inc. in the United States and other countries, and are being used under license.
- Designed specifically to meet exact demands of SCIEX MS when and if required, no manual input needed
- 24/7 performance - next generation high performance premium compressors, ensuring maximum uptime of your LC-MS instrument
- ECO (Electronic Compressor Optimisation™) technology for increased compressor durability and reduced carbon footprint
- Repeatability - Multi-Stage Purification™ to reduce moisture and contaminants providing consistent quality of gas
- Low impact on laboratory with low noise and heat emissions
- Significantly reduced footprint, to fit under most standard lab benches
- No external compressed air source required
- Fixed Annual Service Interval - service downtime limited to once a year
Gas
- Gas Type: Nitrogen
- Max Gas Flow: 25L/min
- Max Output Pressure: 60psi/4.1bar
- Gas Type: Air
- Max Gas Flow: 32L/min
- Max Output Pressure: 100psi/6.9bar
- Gas Type: Air
- Max Gas Flow: 25L/min
- Max Output Pressure: 70psi/4.8bar
Site & installation
- Gas Outlets Fitting: 3 x 1/4" BSPP
- Power Consumption: 1,640 VA
- Voltage: 240v ± 10%
- Frequency: 50 / 60 Hz
- Current: 7 A
- Heat Output: 5545 BTU/hr
- Max Operating Temp: 30°C / 86°F
- Particles: 0.01µm
- Phthalates: none
- Suspended Liquids: none
- Noise Level: <58 dBA
Dimensions & weight
- Size (HxWxD) mm: 700 x 570 x 897 mm
- Size (HxWxD) Inches: 27.6 x 22.4 x 35.3 inches
- Generator Weight: 152kg / 334.4lbs
