GasiFlex - Model 50 - Biomass Gasifier Power Unit
From 50kW Biomass Gasification
The GasiFlex 50 - power unit built into 20ft container is a unique“3-in-1” solution of a robust gasification, a co-generation, a dryer. The high degree of automation enables the packaged technology to be deployed without constant staff and to be monitored constantly by remote surveillance. The unique biomass based patented technology accepts the input fuel materials with high flexibility and tolerance.
-
Most popular related searches
Product Details
- Energy balance/hour: max 49 kg Woodchips of 25% moisture => 49 kWe + 85kWt
- Input Material - Woodchips Quality Tolerant
- Fully Automated, Remote Monitoring
- Integrated Safety Regulations
- Easy Maintenance
- International Service
- Fast Installation and Start Up
GasiFlex50 Technical Parameters:
- Input Material - Woodchips: G 20-50
- Humidity of Input Material: < 25% , best gasification performance <18% integrated dryer is decreasing the humidity by7%
- Captive electric consumption: approx. 1.5-2 kW
- Ash removal: automatic ash removal by the conveyor, from the ash collector manually
- Supply of wood chips: by screw conveyor
- The output power /hour 49 kW electric power output; 85 kW of thermal power output (H2O loop 90/70 °C )* PLUS 11 kW thermal power output ( dry hot air output at 60 °C for dryer)
- Voltage, frequency, current: 400VAC, 50 Hz, 86A
- Consumption of wooden chips: approx. 5.5 m3 / day, max 1 kg /hour for 1kW electric energy by woodchips of 18% moisture content
- Siemens PLC controller: 5.7 'touch panel, GSM Alarm signal, via Internet
- Compressed air: required working pressure 6-8 bar consumption 200 l/h, to be provided by the buyer
- Gas engine: Natural Aspirated ORIGINE 8,0L, V8l.
- Generator: HGIE2 generator, 3-phase ind. motor, 400VAC, 50Hz, air-cooled, RPM: 1500 / min
- Automatic ignition: Yes, Electric ignition
- Performance: Indoor/Outdoor version
- Operating hours / year: min 7500 hours
- Containerized Version Size: L: 6.057 mm W: 2.440 mm H: 2.591 mm
- Weight : max 4,300 kg
*The power output oscillates in the range of +/- 7% of defined parameters
Main Features
- Fully Automated, Remote Monitoring
- Integrated Safety Regulations
- Proprietory co-generation design & production
- Easy Maintenance & International Service
- Fast Installation and Start Up
Synthetic Gas Sampling
- Technopa offers the certified sampling of the syngas for tars analysing.
- We are ready to provide for you the final tar analise with the cooperation with University in Ljubljana

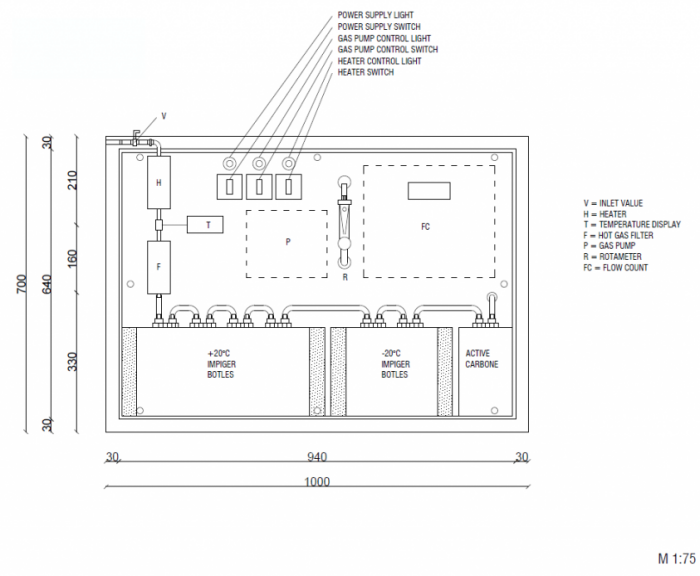

- The Tars sampling machine, produced by our company iFlex is a device, where according to CET/TS 15439 as current valid standard in Europe, the tars are collected and prepared for anlysis by GC-MS methode (gas chromatography - mass spectrometer) .
- The analysis can be done in laboratories, having such analysator, after the Isokinetic sampling of syngas following ISO 9069, VDI 2060 is performed.
With simple words, phe procedure is following:
- Tas must be heated to app. 400 deg. C, where all tars are evaporated and not stopped at following particle filter.
- The heated gas passes thrue the Quarzfilter thimble, where particles are collected, but tars passing thru.
- The syngas enters to sampling train made by impiger botles, where in the first 4 impiger botles water is eliminated and tars gradually solved in IPA solvent (iso propanole). The medium temp. is +20 C.
- The syngas enters to cold solvent media - minus 20 C, where entire is solved and remained in iso propanol filled impiger botles
- VOC (volatile organic compounds) are binded with active carbon
- Gas enters to Vacuum pump, driving the process flow
- Gas enters to rotameter, where we adjust the flow velocity
- Gas enters to volumetric flow meter, where total volumetric flow of the sampling is registered.
