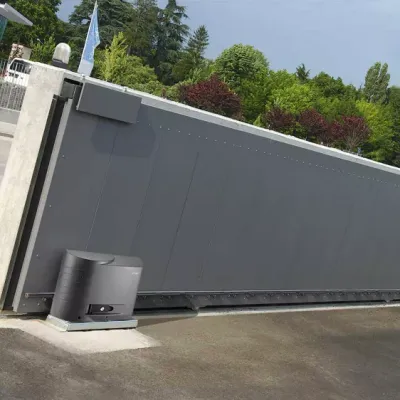

Ditec - Model CROSS 18/19 Series - Gate Automation System
FromDitec S.p.A.
The Ditec CROSS 18/19 is a robust automation system specifically engineered for commercial and industrial gates, exhibiting remarkable durability and reliability. Designed to handle gates up to 20 meters in width and weighing as much as 1800 kg, this system is ideal for environments requiring heavy-duty use. The automation system is flexible, offering four variants including three single-phase models and one three-phase model. It incorporates a control panel that can be integrated within the cabinet and provides varied limit switch options such as rotary, lever-operated, and magnetic. Engineered to manage slide gates up to 1800 kg, the Ditec CROSS 18/19 is tailored for intensive usage. Its three-phase electronics, supporting from 230 V to 400 V, ensure optimal performance even in challenging conditions by providing enhanced dynamic thrust at the start of the operation. The product line is comprehensive and fully adheres to EU directives and standards, making it a reliable and conforming choice for demanding applications.Most popular related searches
Strong and sturdy for commercial and industrial applications, they can move gates of up to 20 m wide, weighing up to 1800 kg. The best choice for heavy-duty use, available in four different versions: 3 single phase and one three-phase. Versions with control panel integrated in the cabinet and varied limit switch options (rotary, lever-operated, magnetic) are also available.
For sliding gates up to 1800 Kg. Ideal for intensive use.
RELIABLE and STURDY
- lubricating grease suitable for temperatures ranging from -35°C to +55°C
- high-reliability control panels with sturdy contacts
- irreversible geared motor to avoid installation of electro-mechanical locks
- Safety-Test function
- electric brake and electronic clutch to guarantee irreversibility and precise stopping points
- key-protected handle release system for manual opening and closing of the gate in the case of a blackout
- vertical levelling screws and horizontal adjustment slots to adjust the automation system to the surface below and the gate rack.
POWERFUL
Three-phase electronics from 230 V – 400 V guarantee maximum performance even under adverse conditions, thanks to greater dynamic thrust during the initial phase of operation.
COMPLETE RANGE
- two 1800 kg versions without control panel, one single-phase and one three-phase
- two 1800 kg versions with control panel, single-phase.
