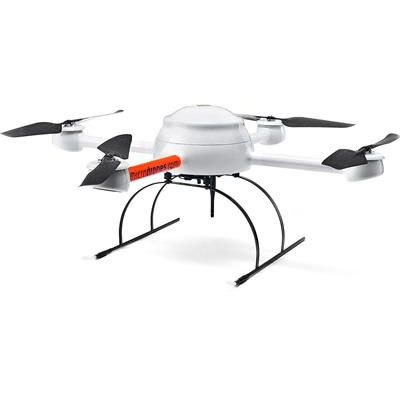

Gateway Drone - Model md4-200 -Gateway Drone

SHARE

Preparing to enter the world of professional UAV use? Want to add a compact UAV to your existing set of business tools?
The md4-200 just might be the perfect aircraft for you.

Most popular related searches
electric motor
carbonization
turbulator
Why does German Engineering Matter?

We’re an international company, but we’ve stayed close to our German roots, meticulously engineering our components in Germany, with a focus on quality first. Here’s what our design and engineering means for you.

mdFNC

The mdFNC on-board electronics ensure every situation is under control – more precisely than ever before.

mdBlackBox

The proven technology of the mdBlackBox allows access to all flight data.

mdCockpit

mdCockpit is an application which brings together all functions for planning, monitoring and analysing your flights.

mdIMU

The mdIMU is based on new Six Axis sensor, which features even greater precision and higher temperature resistance.

mdOS

The high-performance RTOS "mdOS" has been optimised for minimum RAM and ROM consumption, as well as high speed and versatility.

mdSI²

The Microdrones System-Integrator-Interface is conceived primarily as a gateway for "intelligent loads".

Below are just a few of the benefits of choosing an md4-200 UAV:

Compact size simplifies transport.

The md4-200 is smaller and lighter than our other models, making it easier to take with you.

Fly up to 25 minutes.

The md4-200 delivers a longer flight time than nearly all of its competitors.

Fly in less-than-perfect weather.

The rugged carbon fiber body of the md4-200 can handle poor, rainy weather conditions.

Fly immediately.

Microdrones has developed a unique AHHRS (Attitude, Height, and Heading Reference System) that makes flying easy. Beginning pilots can usually learn to control our UAVs in less than an hour.

Includes both manual and automatic control.

Fly manually with remote control or automatically using GPS Waypoint navigation.

Respectable payload capacity.

md4-200 can carry a payload of up to 250 g (.6 lbs), which will accommodate many popular sensors and cameras.

Competitive pricing.

It’s now easier than ever to start incorporating professional drones into your business.

  • Rate of climb: 7.0 m/s
  • Operating speed: 8.0 m/s
  • Maximum thrust: 15.5 N
  • Weight: ca. 800 g (depending on configuration)
  • Recommended load: 150 g
  • Maximum load: 250 g
  • Maximum take-off weight (MTOW): 1,100 g
  • Dimensions: 540 mm (from rotor hub to rotor hub)
  • Flying time: up to 25 minutes (depending on load / wind / battery)
  • Battery: 14.8 V, 4S LiPo, 2300 mAh
  • Flat core motors: yes
  • CFD optimised propeller: yes
  • Closed carbon housing: yes

  • IP43 protection: yes

  • Temperature: -10 °C up to 40 °C
  • Humidity: max 90% r.H.
  • Wind susceptibility: vibration-free images up to 4 m/s
  • Flight range: min. 500 m with remote control, with WP up to 6 km
  • Service ceiling: 2000 m ASL
  • Take-off altitude: up to 4000 m NN (WGS84)
  • Up to 25 minutes flying time
  • Rain-resistant, dust-resistant
  • Extremely resistant to cold
  • Extremely resistant to heat
  • Flat core motors
  • CFD-optimised propeller
  • Closed carbon housing
  • Operation via GPS in combination with Microdrones’ comprehensive software
  • Easy to learn, easy to fly
  • Low maintenance costs
  • Low service costs
  • Lower costs compared to traditional manned aircraft
  • Low noise electric motor
  • Lower air turbulence
