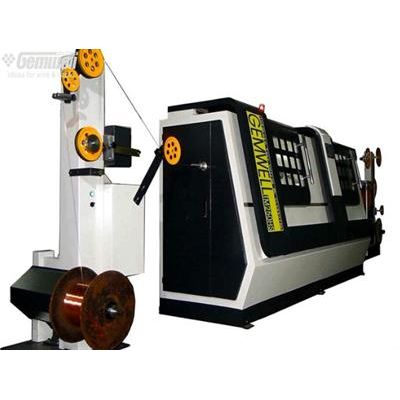

Gemwell - Serve Motor Driven Taping Machine
Application for special cable, such as PTFE coaxial cables with several layers of sintered PTFE tape or need accurate tape overlap adjusting and compliance with special specification: Tape: PTFE, Aluminum foil tape, Mylar, Polyamide, Kapton, Mica, Polyester, Nomes etc. ;.
serve motor driven taping machine advanced function (Optional):
- Payoff and takeup type, according to your requirement.
- Other unit such as sintering oven, laser diameter guage, spark tester, strobe light can be integrated in the line.
- Remote Diagnostic Facility
Serve Motor Driven Taping Machine Features:
- Servo motor drive, tape tension keep steady from start to end. Tape tension 50-1500 g (0.49-14.7N)
- Bi-directional for tape rotation. Each taping head individually run and control.
- Tape tension control with serve motor and controller. Tension sensor from Switzerland, detects taping tension, auto feedback to motor speed, no manual adjustment;
- High speed pad type, can use pad tape OD Φ300mm ID 76mm tape width up to 20mm, high capacity spool type, can use spool tape OD Φ220mm ID 76mm, tape spool height 100mm.
- PLC control system, taping pitch, production, line speed etc. set on touch screen, easy operation.
- 6. Tape broken detection, conductor broken detection, tape finish forecast etc. taping machine will alarm and stop automatically.
- Suitable materials Mica tape, Teflon tape, BOPP, Mylar tape, Polyimide tape, cotton paper
- Rotate speed MAX2200rpm, or customized
- Suitable wire dia. Vertical taping head: Ф0.7~4.0mm; Horizontal taping head: Ф0.7~4.0mm
- Taping direction S/Z
- Tape width 4~15mm
- Taping pitch 4~20 mm±1%, overlapping 0~67%, program setting
- Tension element Serve motor
- Control system PLC automatic control system + HMI color touch screen
- Taping driving Servo motor
