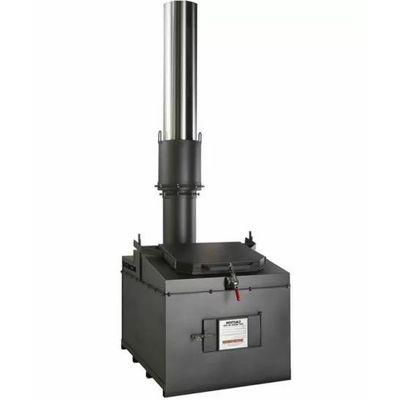

Inciner8 - Model I8-75S - General Incinerator
The biggest `S` model is the i8-75S, it features a spacious chamber capacity and uses controlled air technology to provide the best combustion environment for a variety of different waste types. Our versatile range of ‘S’ model incinerators are designed to be multi-purpose. This particular model benefits from a top loading design and very simple operation process. Ideal as a stand-alone machine. This unit features a secondary chamber with a 0.5 second retention time. This allows the re-burn of harmful emissions.
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Modular refractory lining
- Camps
- Military Operations
- Universities & Colleges
- < 200 People Comunities
- Industrial Waste < 600kg day
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
Operational Specifications
- Combustion Chamber Volume (m3): 0.75m3
- Burn Rate*: up to 50kg per hour
- Average Fuel Consumption: 10 - 14 ltrs p/h
- Operational Temperature: > 850°C
- Gas Retention in Secondary Chamber: 0.5 secs
- Temperature Monitoring: Yes
- Average ash residue (%): 3%
- Thermostatic Device: Yes
Physical specifications
- External Length (mm): 1610mm
- External Width (mm): 1190mm
- External Height (mm): 4680mm
- Door Size (mm): 990 x 910
- Shipping Weight: 2450kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
