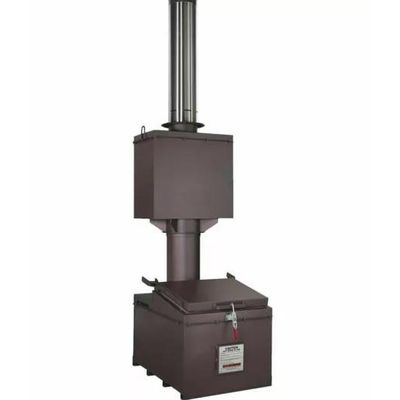

Inciner8 - Model I8-40G -General Incinerator
Our i8-40G builds upon the success of our i8-20G and is a simple and effective incinerator from our small range. It excels due to its suitability for various non-hazardous waste types such as wood, paper, cardboard and other uncontaminated materials. The i8-40G General Incinerator fits right in the middle of our standard range in terms of capacity and is a simple, effective multi-purpose incinerator with suitability for disposing of general and medical waste. This unit benefits from an advanced secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time. Giving you a reliable total waste solution.
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Small operating footprint
- Camps
- Military Operations
- OiI & Gas Facilities
- < 120 People Communities
- Industrial Waste < 500kg day
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
Operational Specifications
- Combustion Chamber Volume (m3): 0.36m3
- Burn Rate*: up to 30kg per hour
- Average Fuel Consumption: 9 - 11 ltrs p/h
- Operational Temperature: > 850°C
- Gas Retention in Secondary Chamber: 2 secs
- Temperature Monitoring: Yes
- Average ash residue (%): 3%
- Thermostatic Device: Yes
Physical specifications
- External Length (mm): 1240mm
- External Width (mm): 920mm
- External Height (mm): 4400mm
- Door Size (mm): 560 x 560
- Shipping Weight: 1520kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
