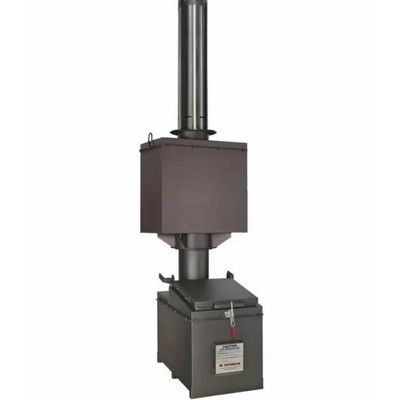

Inciner8 - Model I8-20G -General Incinerators
The i8-20G is perfect for small camps, individual businesses or communities where waste streams are low. It is one of the most affordable ways to introduce yourself to the world of Inciner8. The i8-20G is one of the smallest general incinerators in our range. The top-loading design means liquids are well contained within this system during combustion. The i8-20G General Incinerator is a simple, effective multi-purpose incinerator with suitability for disposing of general and medical waste due to its advanced secondary chamber technology with a gas retention time of 2.0 seconds to comply with stringent environmental standards.
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Small operating footprint
- Camps
- Military Operations
- OiI & Gas Facilities
- < 70 People Communities
- Industrial Waste < 300kg day
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
Operational Specifications
- Combustion Chamber Volume (m3): 0.18m3
- Burn Rate*: up to 20kg per hour
- Average Fuel Consumption: 7 - 9 ltrs p/h
- Operational Temperature: > 850°C
- Gas Retention in Secondary Chamber: 2 secs
- Temperature Monitoring: Yes
- Average ash residue (%): 3%
- Thermostatic Device: Yes
Physical specifications
- External Length (mm): 1070mm
- External Width (mm): 670mm
- External Height (mm): 4310mm
- Door Size (mm): 490 x 490
- Shipping Weight: 1230kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
