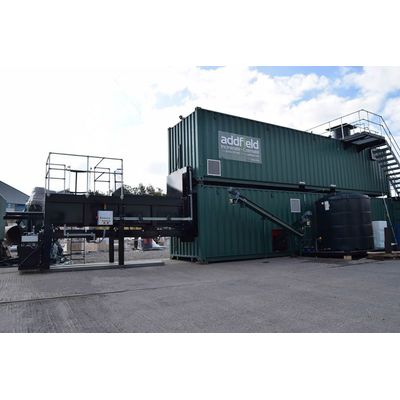

Addfield - Model G250 (250Kg/hr) -General Municipal Incinerator

Using the Pyrolytic principles of combustion, it is particularly suited for burning general municipal waste.

The G250 machine is designed with a stepped hearth refractory. A principle that is best suited for high capacity installations that require a burn rate of 250kg/hr and a thermal input of 1,000,000 Kcal/hr.

This range of machines is compatible with the Addfield automatic bin tipper and auto-loading facility. Automatic de-ashing options are also available.

• General Municipal.
• Camp Waste.
• Food Process Plants.
• Oil Sites.
• Military Installations.

Parameters: Value

• Volume: 5.45 m³
• Loading Chambers Size: 2.4m x 1.7m x 1.7m
• Loading Method: Front
• Refactory Thickness: 191mm - 226mm
• Gas Retention Time: 2 Seconds
• Fuel Options: Diesel, LPG, Natural Gas, Bio Fuel, Dual Fuel
• Afterburn Complies with EU Legislation: Yes
• CE Certified: Yes
