Power Telematics - Model PT300 - Generator Monitoring Systems
Recommended Applications: Residential and commercial generators with non-sound attenuated enclosures in locations with decent cell coverage.

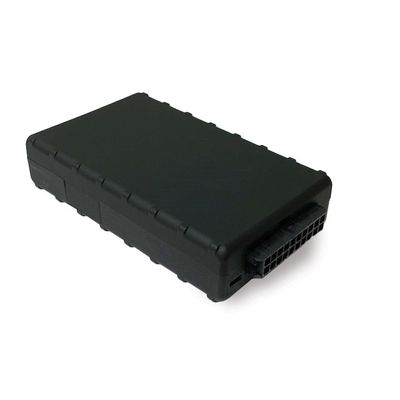

The PT300 generator monitoring system is a full featured solution for any stationary residential and commercial generator. The PT300 is installed on the generator set, inside the enclosure. This monitor includes a custom wiring harness that can be installed on any brand/make/model generator and has four (4) programmable bias inputs and one (1) analog input. These inputs are used to monitor additional alarm conditions from the generator controller and work in conjunction with our optional accessory kits. This system is equipped with a multi-carrier modem to connect to the best available network in the area and has an internal cellular and GPS antenna.
All monitors include the first 12 months of monitoring service. The monitoring service timer starts at the time of installation or 2 years after purchase if not installed.
- PT300 Monitoring System
- Internal Cellular & GPS Antenna
- Multi-Carrier Modem & Connection
- Over-The-Air Unit Configuration and Updates
- Custom Wiring Harness Equipped with:
- 4 Digital Inputs
- 1 Analog Input
- 2 Relay Driver Outputs
- 7-32VDC Power
- Internal 1000mAh Lithium Ion Battery
- Remote Start/Stop Capable
