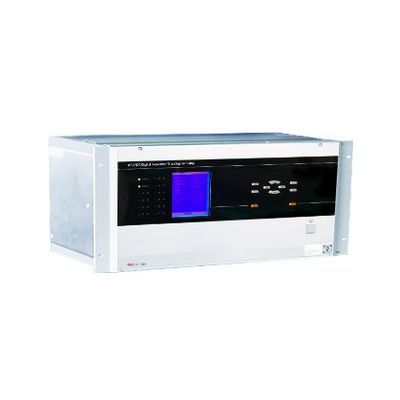

XJ Electric - Model WFB-800 Series - Generator Transformer Set Protection Device
WFB-800 series generator transformer protection device can provide a full set of protection for different capacities, different voltage levels, different wiring type of generator sets, according to the actual project needs, select the appropriate product model.
Most popular related searches
generator set
gas powered
gas power
nuclear power
condition monitor
biomass power
wave power
condition monitoring
power generation
hydropower
It is suitable for thermal power, hydropower, nuclear power, gas power, biomass power and other types of power plants.
- Protection function maximisation design, perfect and flexible configuration
- Exclusive patented technology added
-
Unique fault identification technology during air-drop main transformer process
-
Stator turn-to-turn protection technology based on the principle of negative sequence direction of fault components
-
Plus 20Hz injection stator single-phase grounding protection technology
-
Plus low-frequency square wave power injection rotor grounding protection
-
Full life cycle condition monitoring
-
"Start +action" protection tripping exit method.
- Device voltage : DC 85~300V
- System frequency: 50/60HZ
- Rated AC Voltage: 100~120V
- Rated AC current: 1A/5A
- Dimension : 482.7mm*265.9mm*256.2mm Or 259.3mm*265.9mm*256.2mm
