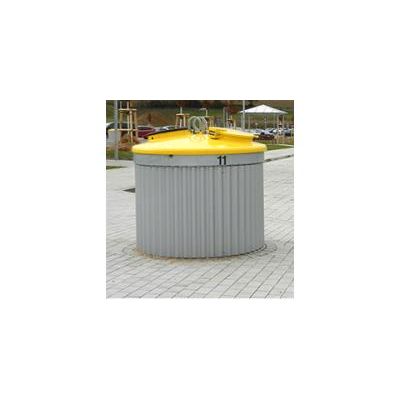

GeoTainer - Model GT-One -Semi Underground System

SHARE

The GeoTainer® Model GT-One is characterised by its slender form and light weight. This means less costs are incurred for transport and less space is needed on location.

Most popular related searches
UPS system
  1. Pick-up system for truck crane
  2. Collecting container
    • Collecting container made of galvanized steel sheet
    • Basin-like trap doors retain any remaining liquid
    • Trap doors held and operated by traverse / leverage system which is connected to pick-up system
  3. Casing for the outer container (overground)
    • Wooden casing "economic"
    • Plastic panels
    • Corrugated metal sheet
    • Perforated metal sheet
  4. Outer container
    • Steel:
      - Sturdy construction made of galvanized steel sheet
      - Anchor straps on the side to facilitate transport
  • Volume (approx. in m³) 3,0
  • Height (not incl. pick-up) (approx. in mm) 3000
  • Height visible section (approx. in mm) 1300
  • Built-in dimensions (Ø x h) (approx. in mm) 1250 x 1925
  • Weight concrete outer (approx. in kg) 250
  • Weight steel collecting container (approx. in kg) 320
  • Total weight (approx. in kg) 570
