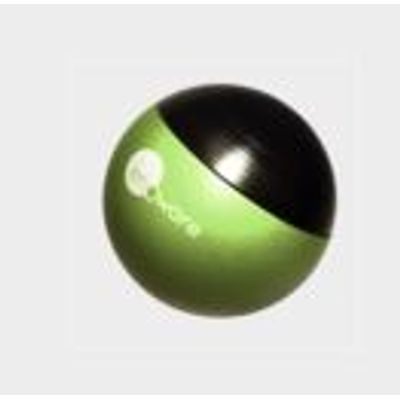

GEOsniff - Geothermal Probe Measurement Pig

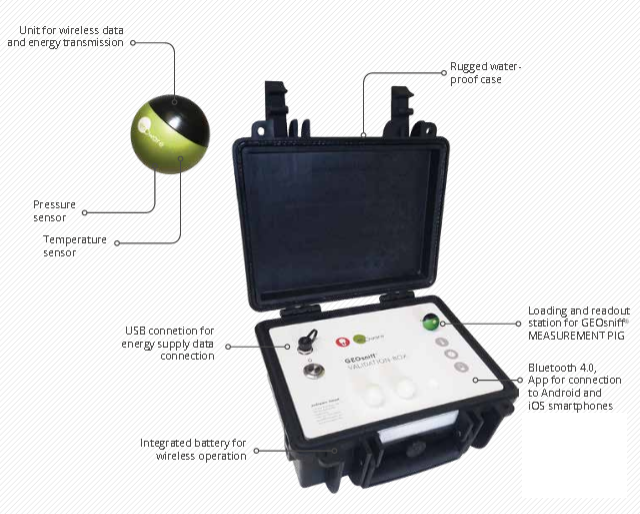

For manual or automatic insertion into the geothermal probe and measuring of a high-precision temperature-depth profile as well as the absolute depth of an geothermal probe. Charging the integrated energy store, transferring data and configuration is done with the VALIDATION BOX or with the GEOsniff AUTO BYPASS for continuous operation.

Most popular related searches

geothermal probe

energy storage

geothermal

geothermal monitoring

MECHANICALLY

Design spherical / 20 mm
Material housing parts anodized aluminum / plastic / stainless steel
Temperature resistance –25 … +70 °C
Pressure resistance 45 bar
Density 1.7 kg/dm³

ELECTRICALLY

Energy storage integrated
Energy supply and data transmission wireless
Charging duration 7–20 min, depending on state of charge

SENSORS

Pressure measuring ranges 30 bar (optional 14 bar)
Pressure sensor absolute deviation –60 ... +20 mbar (100 m, 0 ... 40 °C)
Pressure sensor resolution 1.0 mbar
Temperature sensor measuring ranges –25 … 50 °C (optional up to 70 °C)
Temperature sensor deviation 0,05 K (in calibration mail –10 … 30 °C)
Temperature sensor resolution (–20 … 60 °C) < 0.01 K

MEASUREMENT DRIVE

Measuring frequency 1/60–32 1/s
Feasible single measurments 3200 (for data and energy storage)
Measuring duration with 32 1/s 102 s
Measuring duration with 1/30s 27 h
Duration of data transmission (3200 Points) approximately 16 min
Lowering speed (geothermal probe, wasser) approximately 6.5 m/min (U32), approximately 15.0 m/min (U40)
