GEOSNIFF MEASUREMENT PIG

Design spherical / 20 mm
Density 1.7 kg/dm³
Measuring range pressure / temperature 30 bar (optional 14 bar) / –25 … +50 °C (optional up to 70 °C) Pressure resistance 45 bar
Temperature resistance –25 … +70 °C
Feasible single measurements 3200 (for data and energy storage)
Energy supply and data transmission wireless
Charging duration 7 - 20 min, depending on state of charge
Lowering speed (geothermal probe, water) approximately 6,5 m/min (U32), approximately 15 m/min (U40)

GEOSNIFF BYPASS

Components 60 liter barrel, manual Bypass, Zehnder submersible pump (power consumption 850 W, max. fluid quantity 9500 l/h)
Function comfortable manual insertion and discharge of the
GEOsniff® MEASUREMENT PIG

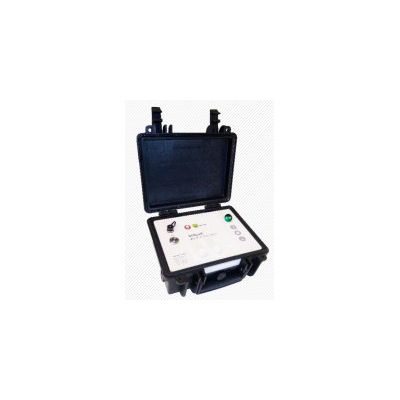

GEOSNIFF VALIDATION BOX

Casing compact waterproof case, IP65 when open
Function charging the integrated GEOsniff® MEASUREMENT PIG energy storage, transmission of measurement data, configuration of measurements, compatible with all

GEOsniff MEASRUEMENT PIGS

Energy storage integrated battery, up to 30 measurements possible, 8h operating time
Connections USB connection to charge integrated battery via power supply or car adapter
Data transmission and controling Bluetooth 4.0 for connection with GEOsniff® APP

GEOSNIFF APP

Operating system iOS / Android (available soon)
Mobile device iPhone, iPad, iPod touch (Android available soon)
Function Control unit of VALIDATION BOX for configuration, visualization, management and export the GEOsniff®
MEASUREMENT PIG measurements via CSV.
The data storage includes multiple measurements and logs them via GPS.

GEOsniff - Model 2.0 - Geothermal Probe Starter Kit

Product Details
