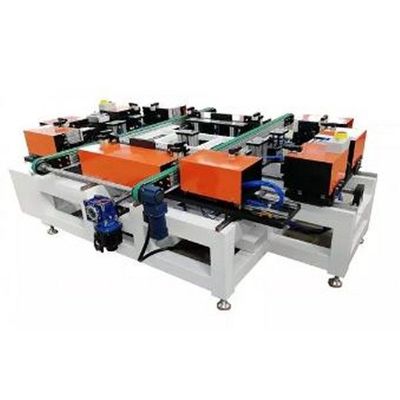

Ooitech - Model OTZK-A -Gluing & Framing Machine

Automatic gluing & framing machine is used to install the aluminum frame and automatically overflow glue.

Name : Gluing & Framing machine
Model : OTZK-A
Machine Function : online gluing and framing
Applicable Panel Size :
Maximum Panel size :2500×1400×(30~50mm)
Minimum Panel size:1580×808×(30~50mm)
Machine efficiency : Working time:≤35sec
Technical Process : After automatic framing, Input and Output of panel will be circulating in order
Working Voltage(V/Hz) : 220
Working Speed : 1 panel/(35sec)
Working Table Height (mm) : 950±50
Stress(MPa) : 0.6-0.7MPa
Air Consumption(L/min) : 300

Specification
