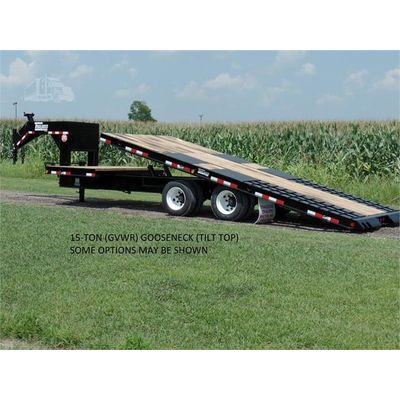

Trailboss - Model GF25TBE 15-Ton (GVWR) -Gooseneck (Tilt Top)
15-Ton (GVWR) Gooseneck (Tilt Top). Framework: Main Frame: 14" I-Beam 22# per ft. Cross Members: 4" channel 7.7# per ft. (pierced thru main frame). Side Rails: 7" channel 9.8# per ft.
Most popular related searches
Undercarriage:
- Tandem 15,000# oil bath axles
- 12 1/4" x 5" brakes, both axles
- 8-hole Budd wheels (8) Unimount
- 215/75R17.5 16-ply radial tires (8)
- Electric brakes
Dimensions:
- Bed Length: 25` partial tilt (5` stationary deck + 20` tilt)
- Overall Width: 8 1/2`
- Height: 35" (unloaded) 8` gooseneck
Miscellaneous:
- Adjustable 2 5/16" ball coupler
- High tensile safety chains
- 12,000# drop-leg jack
- Two (2) hydraulic cushioning cylinders
- DOT sealed beam lights (LED)
- Mud flaps
- Protected wiring system
- Stake pockets and D-rings along each side
- 2" hardwood decking with cleated rear deck
- Color: Gloss Black (options available)
Length: 25 ft
Width: 102 in
Floor Type: Wood Floor
Tires: 215/75R17.5
Wheels: Budd
